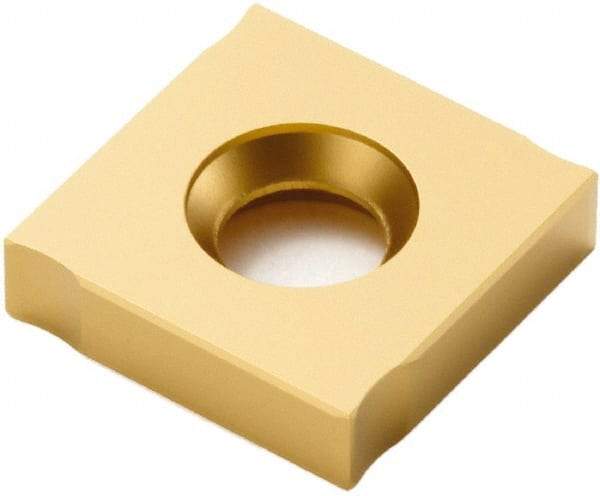

Seco - 335.191103 MD09 Grade T25M Carbide Milling Insert - TiCN/TiC/TiCN/TiN Finish, 0.106" Thick, 0.433" Inscribed Circle
Item #: 56968381
Brand: Seco
Model #: 15255
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 335.19 |
| Insert Size | 1103 |
| Material | Carbide |
| Material Grade | C5 |
| Manufacturer's Grade | T25M |
| Coating | TiCN/TiC/TiCN/TiN |
| Length (Decimal Inch) | 0.4330 |
| Inscribed Circle (Decimal Inch) | 0.4330 |
| Thickness (Decimal Inch) | 0.1060 |
| Rake Angle | 15 |
| Coating Process | CVD |
| Shape | Square |
| Chipbreaker | MD09 |
| Cutting Edge Style | T-Land |
| ISO Number | 335.19-1103T-MD09 |
