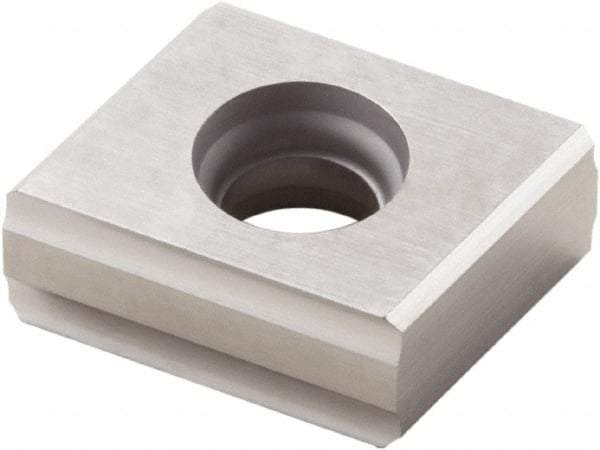

Seco - 335.181606 E09 Grade HX Carbide Milling Insert - Uncoated, 0.252" Thick, 0.472" Inscribed Circle
Item #: 56968001
Brand: Seco
Model #: 16443
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 335.18 |
| Insert Size | 1606 |
| Material | Carbide |
| Manufacturer's Grade | HX |
| Coating | Uncoated |
| Length (Decimal Inch) | 0.6300 |
| Inscribed Circle (Decimal Inch) | 0.4720 |
| Thickness (Decimal Inch) | 0.2520 |
| Rake Angle | 10 |
| Rake | Positive |
| Shape | Diamond |
| Chipbreaker | E09 |
| ISO Number | 335.18-1606-E09 |
