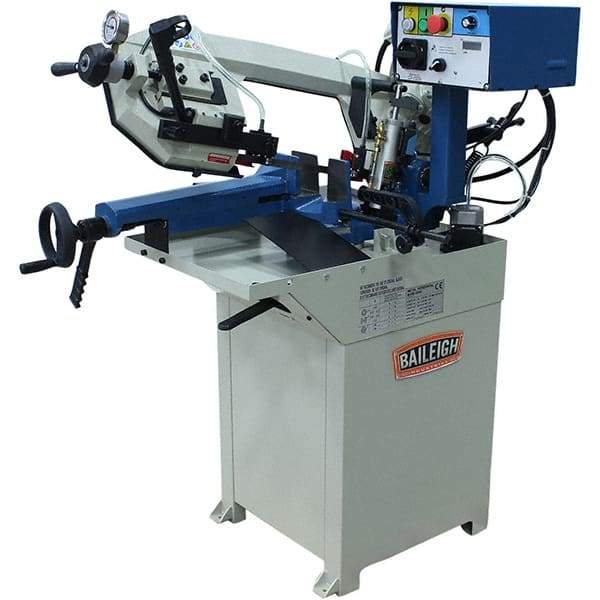

Baileigh - 8.26 x 6.69" Max Capacity, Manual Geared Head Horizontal Bandsaw - 66 to 280 SFPM Blade Speed, 110 Volts, 0 to 60°, 1 hp, 1 Phase
Item #: 56599228
Brand: Baileigh
Model #: 1001309
Exact Tooling IR#: 04
Features and Benefits
Manual bandsaws are controlled by an operator. They manually load the material into the saw, measure lengths to cut and adjust stops.
Geared head drive systems are similar to step pulleys, but are driven by a geared transmission. They offer rapid speed changes by turning a hand dial and feature 3 to 4 fixed speeds
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors.
| Product Specifications | |
|---|---|
| Machine Style | Manual |
| Drive Type | Geared Head |
| Angle of Rotation | 0-60 |
| Maximum Capacity (Rectangular) (Inch) | 8.26 X6.69 |
| Maximum Capacity (Rounds) (Inch) | 7 |
| Phase | 1 |
| Voltage | 110 |
| Coolant System | Yes |
| Blade Width (mm) | 19 |
| Blade Width (Decimal Inch) | 0.7500 |
| Blade Speeds (SFPM) | 66-280 |
| Blade Length (Inch) | 83 |
| Blade Length (Decimal Inch) | 83 |
| Blade Length (mm) | 2108 |
| Blade Length (Feet) | 1.38 |
| Blade Thickness (mm) | 0.89 |
| Blade Thickness (Decimal Inch) | 0.0350 |
| Blade Guide Type | Bearings |
| Horsepower (HP) | 1 |
| Base Width (mm) | 1524.00 |
| Base Width (Decimal Inch) | 60.0000 |
| Base Width (Inch) | 60 |
| Base Depth (mm) | 1118.00 |
| Base Depth (Inch) | 44 |
| Base Depth (Decimal Inch) | 44.0000 |
| Warranty | Mfr's One Year Warranty |
