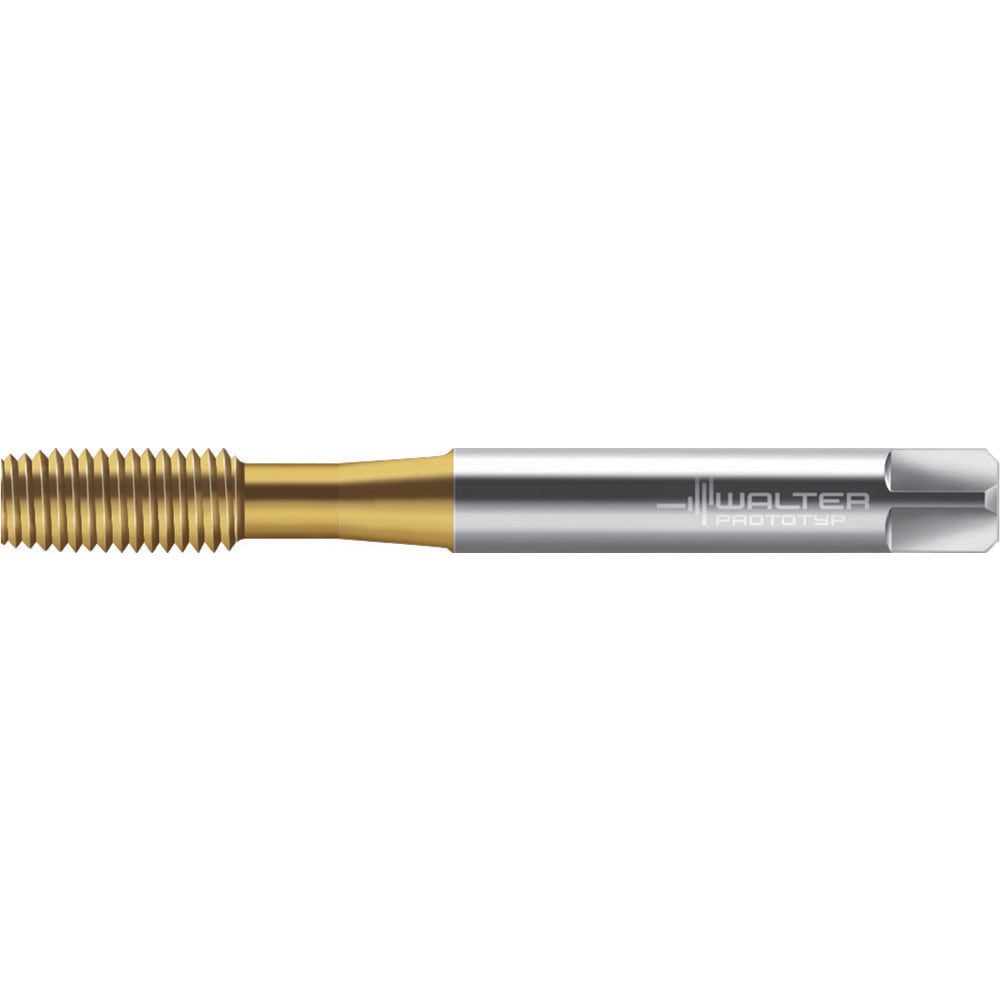

Thread Forming Tap: M6x1 Metric, 6GX Class of Fit, Bottoming Chamfer, High-Speed Steel-E-PM, TIN Finish
Item #: 55401467
Brand: Walter-Prototyp
Model #: 7958095
Product Specifications
| Thread Size (mm) | M6x1 |
| Thread Standard | Metric |
| Chamfer | Bottoming |
| Chamfered Threads | 1.5-2P |
| Material | High-Speed Steel-E-PM |
| Coating/Finish | TIN |
| Coolant Through | Yes |
| Class Of Fit | 6GX |
| Thread Limit | H9 |
| Overall Length (Decimal Inch) | 3.1496 |
| Overall Length (mm) | 80.0000 |
| Thread Direction | Right Hand |
| Thread Length (Inch) | 0.3937 |
| Thread Length (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (mm) | 6.0000 |
| Square Length (Decimal Inch) | 0.3150 |
| Square Length (mm) | 8.00 |
| Application | Threading |
| Series | TC420 |
| Tapping Depth (Decimal Inch) | 1.1811 |
| Tapping Depth (mm) | 30.00 |
| Square Size (Decimal Inch) | 0.1929 |
| Square Size (mm) | 4.90 |
| Number Of Flutes | 5 |
| UNSPSC Code | 23241600 |
