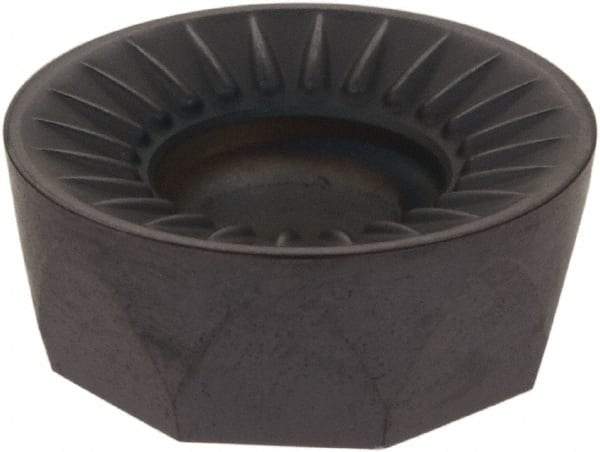

LMT - RCKX1606M0 TR Grade LC610T Carbide Milling Insert - TiAlN/TiN Finish, 1/4" Thick, 16mm Inscribed Circle
Item #: 56445083
Brand: LMT
Model #: 51515
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCKX |
| Insert Size | 1606M0 |
| Material | Carbide |
| Material Grade | C2/C3 |
| Manufacturer's Grade | LC610T |
| Coating | TiAlN/TiN |
| Inscribed Circle (mm) | 16.00 |
| Inscribed Circle (Decimal Inch) | 0.6299 |
| Thickness (Decimal Inch) | 0.2500 |
| Hole Diameter (mm) | 5.80 |
| Hole Diameter (Decimal Inch) | 0.2283 |
| Relief Angle | 7.000 |
| Rake Angle | 23 |
| Coating Process | PVD |
| Shape | Round |
| Chipbreaker | TR |
| ISO Number | RCKX1606MO-TRT |
