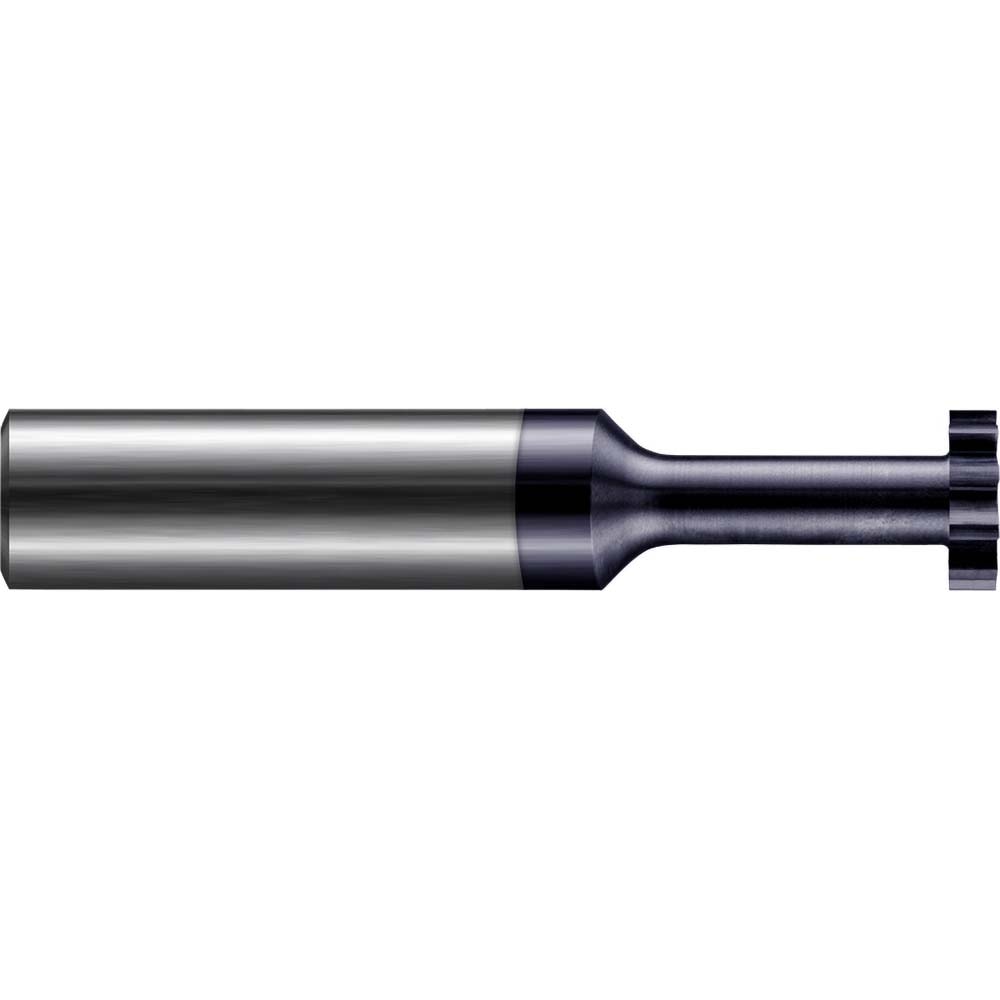

Woodruff Keyseat Cutter: 5/8" Cut Dia, 1/8" Cut Width, 5/8" Shank Dia, Straight Tooth
Item #: 00926279
Brand: Harvey Tool
Model #: 744360-C6
Product Specifications
| Connection Type | Shank |
| Cutter Material | Solid Carbide |
| Cutter Diameter (Inch) | 5/8 |
| Cutter Diameter (Decimal Inch) | 0.6250 |
| Tooth Configuration | Straight |
| Cutting Width (Inch) | 1/8 |
| Cutting Width (Decimal Inch) | 0.1250 |
| Weldon Flat | No |
| Neck Diameter (Decimal Inch) | 0.3120 |
| Neck Length (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Overall Length (Inch) | 3-1/2 |
| Overall Length (Decimal Inch) | 3.5000 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel; Hardened Alloy |
| Primary Workpiece Material Code | P; H; K; M |
| Secondary Workpiece Material | Non-Ferrous Metal; Superalloys & Titanium |
| Secondary Workpiece Material Code | S; N |
| Coating/Finish | AlTiN |
| Number Of Teeth | 10 |
| UNSPSC Code | 23241631 |
