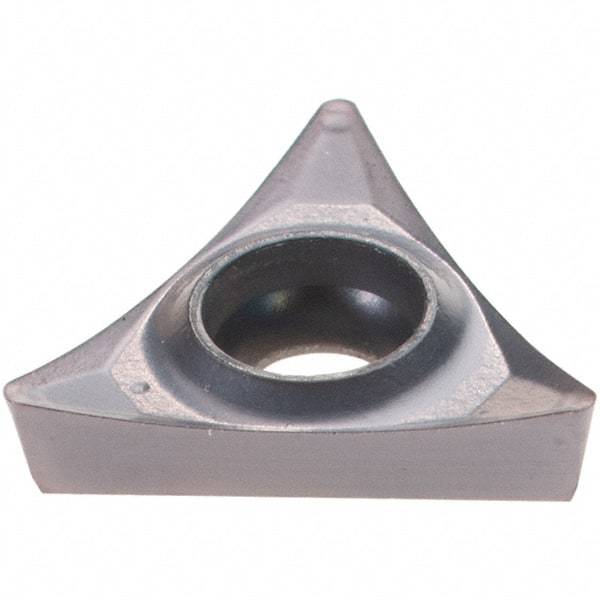

Hertel - TPGT21.51 FY Grade PH7910 Carbide Boring Insert - AlTiN Finish, 60° Triangle, 11° Relief Angle, 1/4" Inscr Circle, 0.094" Thick, 0.015" Corner Radius
Item #: 55734503
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, steel, plastic and other tough-to-machine materials. Application is determined by material grade.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | TPGT |
| Insert Size | 21.51 |
| Manufacturer's Grade | PH7910 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Decimal Inch) | 0.0940 |
| Corner Radius (Decimal Inch) | 0.0150 |
| Coating | AlTiN |
| Chipbreaker | FY |
| Rake | Positive |
| Rake Angle | 20 |
| Relief Angle | 11 |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Coating Process | PVD |
| Insert Holding Method | Screw |
| Shape | Triangle |
