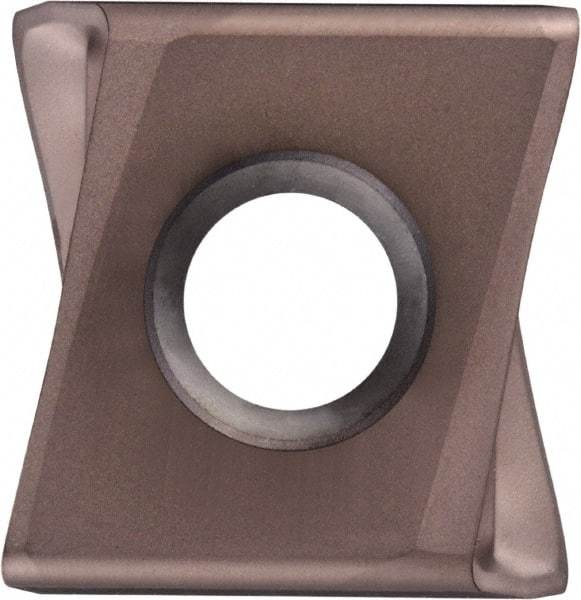

Sumitomo - LNEX130608 H Grade ACP200 Carbide Milling Insert - TiAlN/AlCrN Finish, 6.4mm Thick, 0.03mm Corner Radius
Item #: 55729503
Brand: Sumitomo
Model #: 1PHA015
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNEX |
| Insert Size | 130608 |
| Material | Carbide |
| Material Grade | P15-P30 |
| Manufacturer's Grade | ACP200 |
| Coating | TiAlN/AlCrN |
| Width (mm) | 13.00 |
| Length (mm) | 12.60 |
| Thickness (mm) | 6.40 |
| Corner Radius (mm) | 0.03 |
| Rake Angle | -6 |
| Rake | Negative |
| Coating Process | PVD |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Chipbreaker | H |
| Maximum Depth of Cut (mm) | 12.00 |
| Cutter Series Compatibility | TSX |
