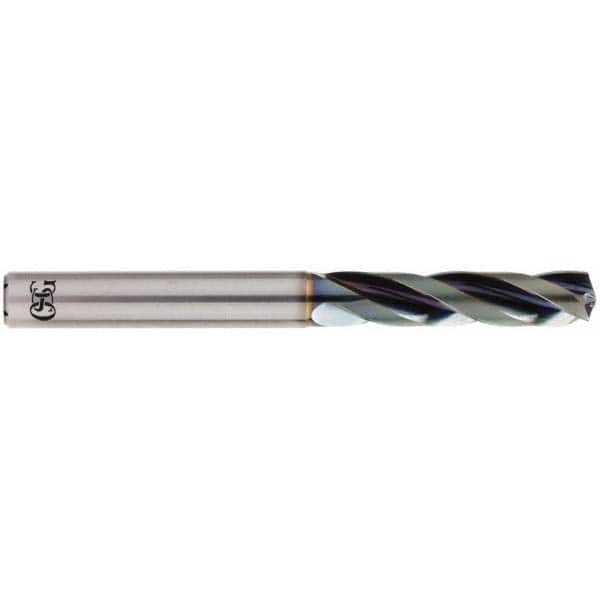

Screw Machine Length Drill Bit: 0.3701″ Dia, 140 °, Solid Carbide WD1 Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 5600
Item #: 55476238
Brand: OSG
Model #: 8660940
Product Specifications
| Drill Bit Size (mm) | 9.40 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | WD1 |
| Drill Point Angle | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 3 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Drill Bit Size (Decimal Inch) | 0.3701 |
| Overall Length (mm) | 106.00 |
| Overall Length (Decimal Inch) | 4.1732 |
| Shank Diameter (mm) | 10.00 |
| Series | 5600 |
| Web Thinning | R-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Stub |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | +0.000 to -0.022 mm |
| Flute Length (mm) | 47.00 |
| Drill Bit Size Range (Decimal Inch) | 0.3500 to 0.4000 |
| Drill Bit Size Range (mm) | 8.00 to 9.50 |
