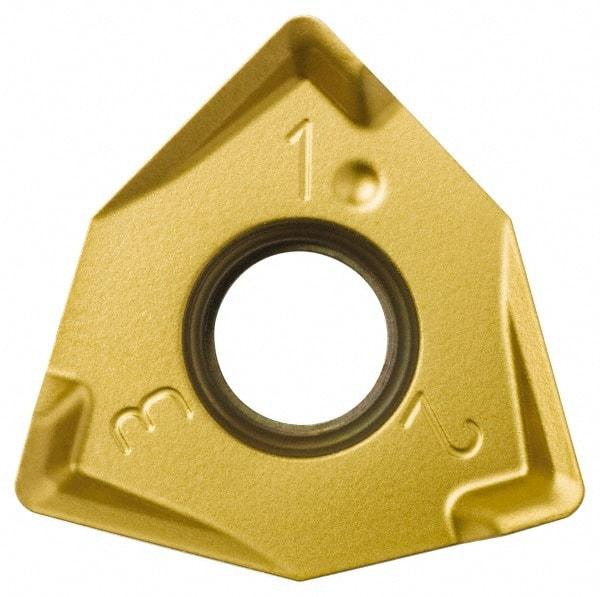

Seco - XNEX080616 MD15 Grade T350M Carbide Milling Insert - TiCN/Al2O3 Finish, 1/4" Thick, 0.491" Inscribed Circle, 1/16" Corner Radius
Item #: 55189476
Brand: Seco
Model #: 43681
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XNEX |
| Insert Size | 080616 |
| Material | Carbide |
| Manufacturer's Grade | T350M |
| Coating | TiCN/Al2O3 |
| Width (Decimal Inch) | 0.4910 |
| Length (Decimal Inch) | 0.4910 |
| Inscribed Circle (Decimal Inch) | 0.4910 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Relief Angle | 0.000 |
| Rake Angle | 17 |
| Coating Process | CVD |
| Shape | Trigon |
| Insert Hand | Right Hand |
| Chipbreaker | MD15 |
| ISO Number | XNEX080616TR-MD15 |
