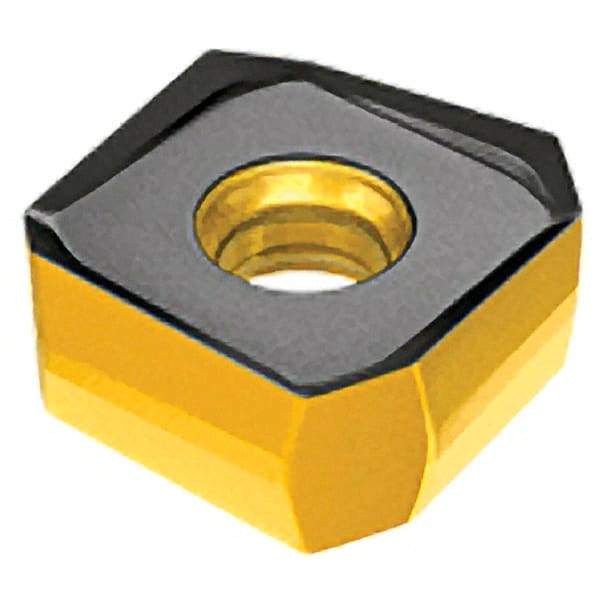

Iscar - S845 SXMU1606 MM Grade IC810 Carbide Milling Insert - AlTiN/TiN Finish, 0.3004" Thick, 0.6378" Inscribed Circle, 0.8mm Corner Radius
Item #: 55162218
Brand: Iscar
Model #: 5606103
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | S845 SXMU |
| Insert Size | 1606 |
| Material | Carbide |
| Manufacturer's Grade | IC810 |
| Coating | AlTiN/TiN |
| Inscribed Circle (Decimal Inch) | 0.6378 |
| Thickness (Decimal Inch) | 0.3004 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Chipbreaker | MM |
| Maximum Depth of Cut (mm) | 7.15 |
| Maximum Depth of Cut (Decimal Inch) | 0.2815 |
| ISO Number | S845 SXMU 1606ADTR-MM |
