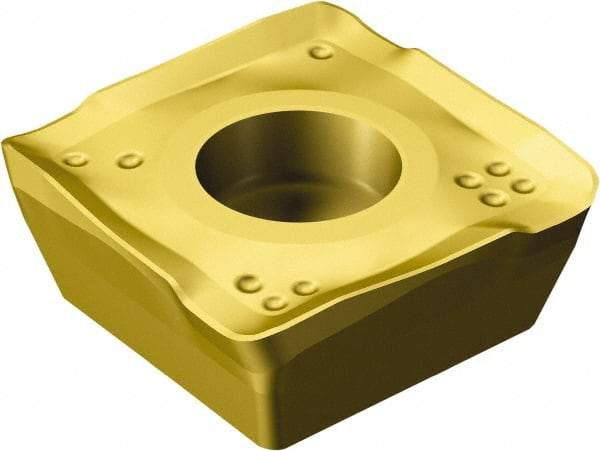

Sandvik Coromant - 490R08T316 KH Grade 1020 Carbide Milling Insert - TiAlN Finish, 3.3mm Thick, 8mm Inscribed Circle, 1.6mm Corner Radius
Item #: 54943808
Brand: Sandvik Coromant
Model #: 5762312
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 490R |
| Insert Size | 08T316 |
| Material | Carbide |
| Manufacturer's Grade | 1020 |
| Coating | TiAlN |
| Inscribed Circle (mm) | 8.00 |
| Inscribed Circle (Decimal Inch) | 0.3150 |
| Thickness (mm) | 3.30 |
| Thickness (Decimal Inch) | 0.1299 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 1.60 |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | KH |
| Maximum Depth of Cut (mm) | 5.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2165 |
| Cutting Edge Style | ER Treated |
| Manufacturers Catalog Number | 5762312 |
| ISO Number | 490R-08T316M-KH 1020 |
