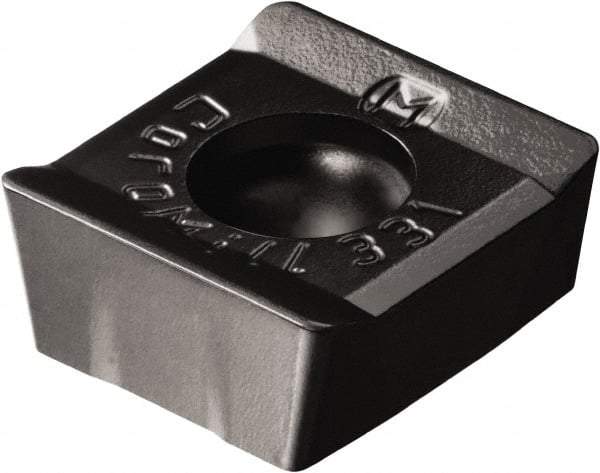

Sandvik Coromant - N331.1A054508 KM Grade 3040 Carbide Milling Insert - TiCN/Al2O3 Finish, 4.45mm Thick, 0.8mm Corner Radius
Item #: 54942818
Brand: Sandvik Coromant
Model #: 5737278
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N331.1A |
| Insert Size | 054508 |
| Material | Carbide |
| Manufacturer's Grade | 3040 |
| Coating | TiCN/Al2O3 |
| Width (mm) | 9.50 |
| Width (Decimal Inch) | 0.3740 |
| Thickness (mm) | 4.45 |
| Thickness (Decimal Inch) | 0.1752 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 2.90 |
| Hole Diameter (Decimal Inch) | 0.1142 |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Neutral |
| Chipbreaker | KM |
| Maximum Depth of Cut (mm) | 5.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.2244 |
| Cutting Edge Style | ER Treated |
| Manufacturers Catalog Number | 5737278 |
| ISO Number | N331.1A-05 45 08M-KM3040 |
