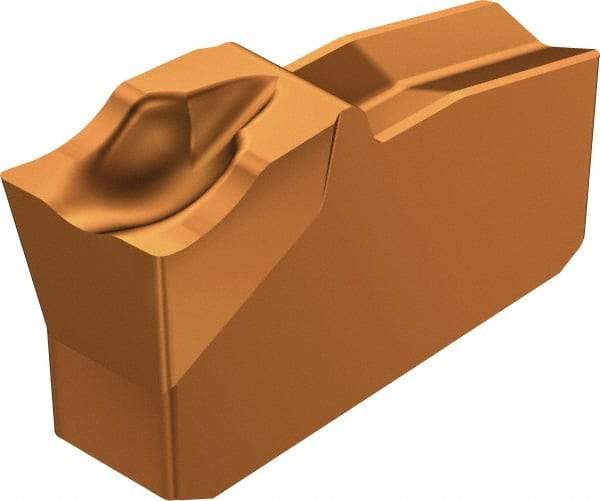

Sandvik Coromant - R151.240 5E 1145 Grade, 0.1575" Cutting Width, Carbide Cutoff Insert - 5° Right Hand Lead Angle, 0.0079" Cnr Rad, TiAlN/AlCr2O3 Coated
Item #: 54931761
Brand: Sandvik Coromant
Model #: 5741623
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | R151.2 |
| Insert Size | 40 |
| Lead Angle Direction | Right Hand |
| Lead Angle | 5 |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Manufacturer's Grade | 1145 |
| Coating | TiAlN/AlCr2O3 |
| Series | T-Max Q-Cut |
| Relief Angle | 7 |
| Chipbreaker | 5E |
| Multi-Use Application | Parting |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Insert Hand | Right Hand |
| Insert Holding Method | Clamp |
| Insert Seat Size | 40 |
| Manufacturers Catalog Number | 5741623 |
