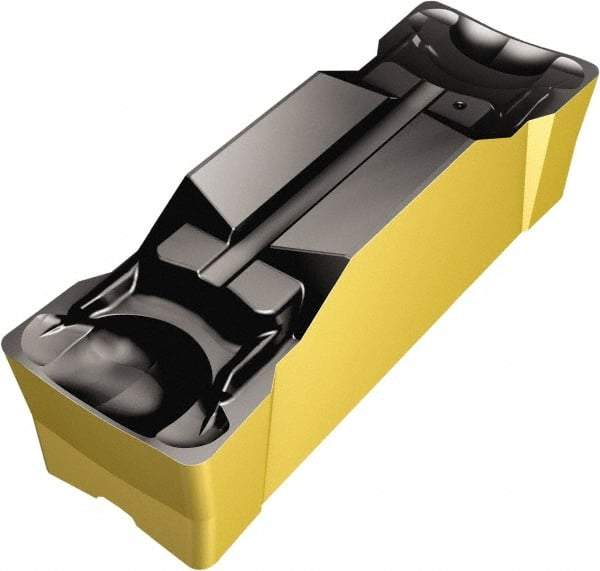

Sandvik Coromant - M2N123 GM Grade 4325, 10mm Cutting Width Carbide Grooving Insert - 28mm Max Depth of Cut, Neutral, 0.8mm Corner Radius, TiCN/Al2O3/TiN Finish
Item #: 54930854
Brand: Sandvik Coromant
Model #: 6532103
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123 |
| Insert Size | M2 |
| Material | Carbide |
| Cutting Width (mm) | 10.00 |
| Cutting Width (Decimal Inch) | 0.3937 |
| Maximum Depth of Cut (mm) | 28.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.1024 |
| Manufacturer's Grade | 4325 |
| Coating | TiCN/Al2O3/TiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 7 |
| Insert Seat Size | M |
| Chipbreaker | GM |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Coating Process | CVD |
| Series | CoroCut 1-2 |
| ISO Number | N123M210000008GM4325 |
| Manufacturers Catalog Number | 6532103 |
