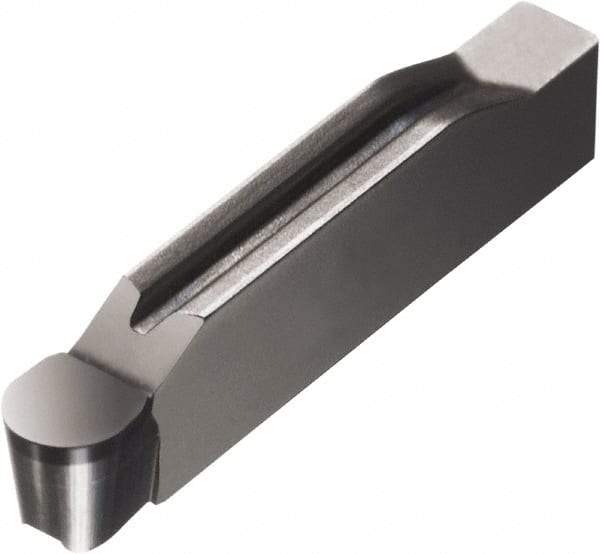

Sandvik Coromant - 0800N123 Grade CD10, 8mm Cutting Width Polycrystalline Diamond (PCD) Grooving Insert - 3.8mm Max Depth of Cut, Neutral, 4mm Corner Radius, Uncoated
Item #: 54929351
Brand: Sandvik Coromant
Model #: 5736389
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | N123 |
| Insert Size | 0800 |
| Material | Polycrystalline Diamond (PCD) |
| Cutting Width (mm) | 8.00 |
| Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 3.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.1496 |
| Manufacturer's Grade | CD10 |
| Coating | Uncoated |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Corner Radius (mm) | 4.00 |
| Corner Radius (Decimal Inch) | 0.1575 |
| Overall Length (mm) | 30.50 |
| Overall Length (Decimal Inch) | 1.2008 |
| Series | CoroCut 1-2 |
| Manufacturers Catalog Number | 5736389 |
