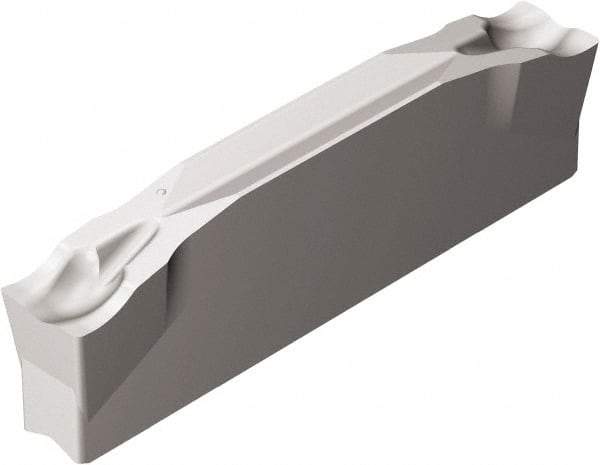

Sandvik Coromant - N123G2-...G CM 525 Grade, 0.1181" Cutting Width, Carbide Cutoff Insert - 0° Neutral Lead Angle, 0.0079" Cnr Rad
Item #: 54928247
Brand: Sandvik Coromant
Model #: 5736037
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | N123G2-... |
| Insert Size | G |
| Lead Angle Direction | Neutral |
| Lead Angle | 0 |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Manufacturer's Grade | 525 |
| Coating | Uncoated |
| Series | CoroCut 1-2 |
| Relief Angle | 7 |
| Chipbreaker | CM |
| Maximum Depth of Cut (mm) | 18.90 |
| Maximum Depth of Cut (Decimal Inch) | 0.7441 |
| Full Radius | No |
| Multi-Use Application | Grooving; Parting; Profiling |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Insert Hand | Neutral |
| Insert Holding Method | Clamp |
| Insert Seat Size | G |
| Width Tolerance | +0.004/-0 (Inch) |
| Manufacturers Catalog Number | 5736037 |
