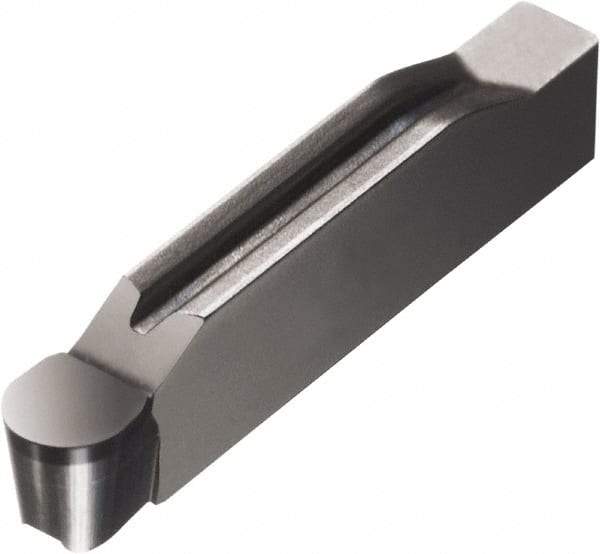

Sandvik Coromant - 0800N123 Grade 7015, 8mm Cutting Width CBN Grooving Insert - 0.85mm Max Depth of Cut, Neutral, 4mm Corner Radius, TiN Finish
Item #: 54927520
Brand: Sandvik Coromant
Model #: 5918497
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | N123 |
| Insert Size | 0800 |
| Material | CBN |
| Cutting Width (mm) | 8.00 |
| Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 0.85 |
| Maximum Depth of Cut (Decimal Inch) | 0.0335 |
| Manufacturer's Grade | 7015 |
| Coating | TiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Corner Radius (mm) | 4.00 |
| Corner Radius (Decimal Inch) | 0.1575 |
| Coating Process | PVD |
| Overall Length (mm) | 30.50 |
| Overall Length (Decimal Inch) | 1.2008 |
| Series | CoroCut 1-2 |
| Manufacturers Catalog Number | 5918497 |
