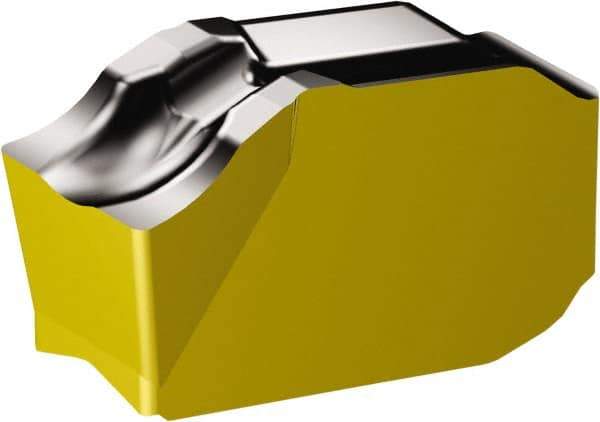

Sandvik Coromant - QDK CM 4325 Grade, 0.2362" Cutting Width, Carbide Cutoff Insert - 0.0118" Cnr Rad, TiCN/Al2O3/TiN Coated
Item #: 54927355
Brand: Sandvik Coromant
Model #: 6427456
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | QD |
| Insert Size | K |
| Cutting Width (mm) | 6.00 |
| Cutting Width (Decimal Inch) | 0.2362 |
| Manufacturer's Grade | 4325 |
| Coating | TiCN/Al2O3/TiN |
| Series | CoroCut QD |
| Relief Angle | 7 |
| Chipbreaker | CM |
| Full Radius | No |
| Multi-Use Application | Grooving; Parting |
| Coating Process | MTCVD |
| Corner Radius (Decimal Inch) | 0.0118 |
| Corner Radius (mm) | 0.30 |
| Insert Hand | Neutral |
| Insert Holding Method | Clamp |
| Insert Seat Size | K |
| Width Tolerance | ±0.001969 (Inch) |
| Manufacturers Catalog Number | 6427456 |
