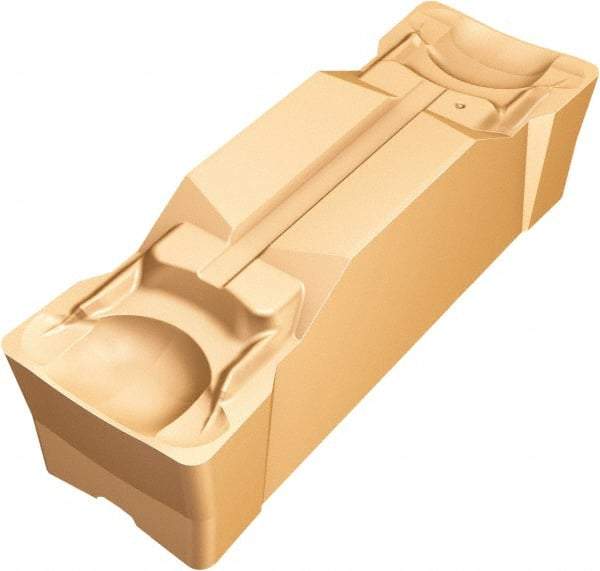

Sandvik Coromant - E2N123 GM Grade 1145, 2mm Cutting Width Carbide Grooving Insert - 18.8mm Max Depth of Cut, Neutral, 0.2mm Corner Radius, TiAlN/AlCr2O3 Finish
Item #: 54927066
Brand: Sandvik Coromant
Model #: 5735787
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123 |
| Insert Size | E2 |
| Material | Carbide |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Maximum Depth of Cut (mm) | 18.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.7402 |
| Manufacturer's Grade | 1145 |
| Coating | TiAlN/AlCr2O3 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 7 |
| Insert Seat Size | E |
| Chipbreaker | GM |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Coating Process | PVD |
| Series | CoroCut 1-2 |
| ISO Number | N123E202000002GM1145 |
| Manufacturers Catalog Number | 5735787 |
| Insert Thickness (Decimal Inch) | 0.1693 |
| Insert Thickness (mm) | 4.3000 |
