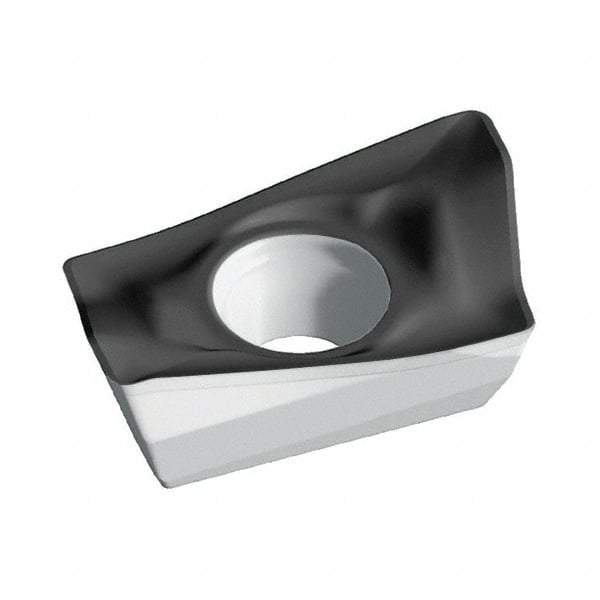

Walter - F56 Grade WSM45X Milling Insert - 4.76mm Thick, 8.4mm Inscribed Circle, 0.8mm Corner Radius
Item #: 54752571
Brand: Walter
Model #: 6841373
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WSM45X |
| Width (mm) | 8.40 |
| Width (Decimal Inch) | 0.3310 |
| Length (mm) | 13.60 |
| Length (Decimal Inch) | 0.5350 |
| Inscribed Circle (mm) | 8.40 |
| Inscribed Circle (Decimal Inch) | 0.3310 |
| Thickness (mm) | 4.76 |
| Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 3.40 |
| Hole Diameter (Decimal Inch) | 0.1340 |
| Relief Angle | 15.000 |
| Coating Process | CVD |
| Insert Hand | Right Hand |
| Chipbreaker | F56 |
| Maximum Depth of Cut (mm) | 13.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.5350 |
| Manufacturers Catalog Number | ADMT120408R-F56 WSM45X |
