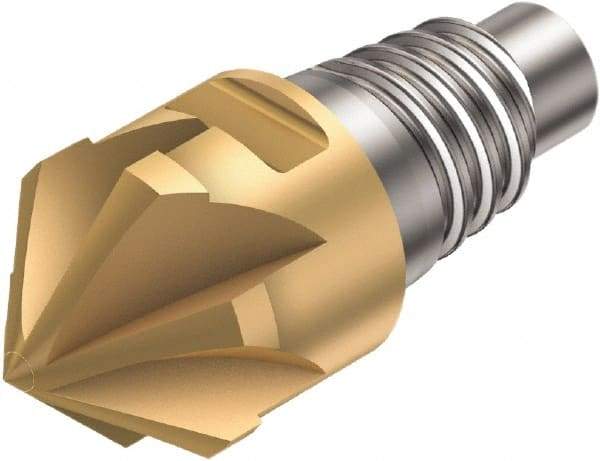

Sandvik Coromant - A316..CM..G Grade 1030 Carbide Chamfer Milling Tip Insert - TiAlN Finish, 8 Flutes, 3mm Cutting Diam, 3.7mm Depth of Cut, 0° Helix
Item #: 54745922
Brand: Sandvik Coromant
Model #: 5722406
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | CoroMill 316 |
| Milling Tip Style | A316..CM..G |
| Milling Tip Type | Chamfer Mill |
| Material | Carbide |
| Cutting Diameter (mm) | 3.00 |
| Cutting Diameter (Decimal Inch) | 0.1181 |
| Manufacturer's Grade | 1030 |
| Depth of Cut (mm) | 3.70 |
| Depth of Cut (Decimal Inch) | 0.1457 |
| Number of Flutes | 8 |
| Coating | TiAlN |
| Coating Process | PVD |
| Helix Angle | 0 |
| Style | A316..CM..G |
| Threads Per Inch | 0 |
| Manufacturers Catalog Number | A316-16CM800-06230G 1030 |
