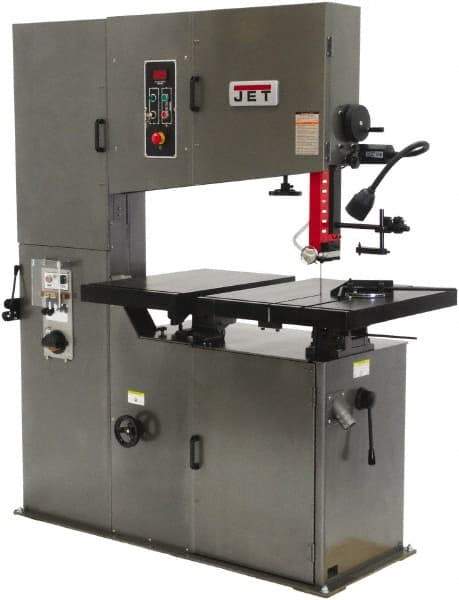

Jet - 36" Throat Capacity, Variable Speed Pulley Vertical Bandsaw - 50 to 410 & 54 to 4,925 SFPM, 3 hp, Three Phase
Item #: 54738232
Brand: Jet
Model #: 414470
Exact Tooling IR#: 04
Features and Benefits
Variable speed pulleys are driven by a V-shaped belt system and a variable speed assembly that regulates an infinite speed range change by the turn of a dial.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
| Product Specifications | |
|---|---|
| Drive Type | Variable Speed Pulley |
| Throat Capacity (Inch) | 36 |
| Height Capacity (Inch) | 12 |
| Phase | 3 |
| Blade Width (Inch) | 1/8 to 1 |
| Blade Speeds (SFPM) | 50 to 410; 54 to 4925 |
| Blade Length (Inch) | 195-1/4 to 198-1/4 |
| Table Length (Inch) | 23-5/8 |
| Table Width (Inch) | 27-1/2 |
| Table Tilt Right (Degrees) | 45.00 |
| Horsepower (HP) | 3.00 |
| Voltage | 230/460 |
| Base Width (Inch) | 32 |
| Base Depth (Inch) | 69 |
| Overall Height (Inch) | 81 |
