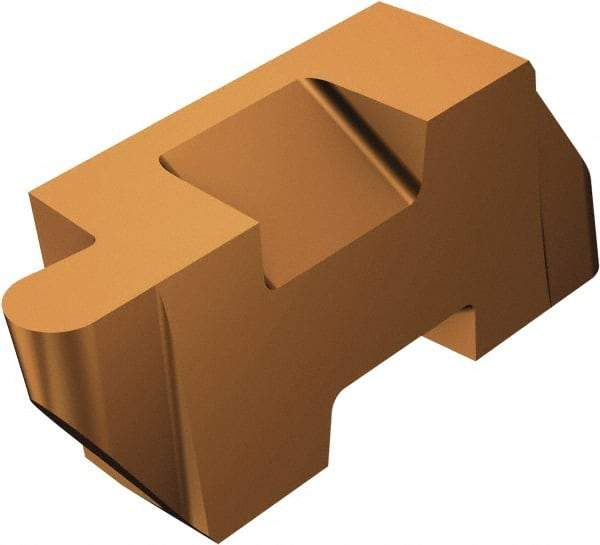

Sandvik Coromant - 3LTLRP TLRP 2.39mm Cutting Width Carbide Grooving Insert - 3.81mm Max Depth of Cut, Left Hand, 1.19mm Corner Radius, TiAlN Finish
Item #: 54731237
Brand: Sandvik Coromant
Model #: 5753549
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TLRP |
| Insert Size | 3L |
| Material | Carbide |
| Cutting Width (mm) | 2.39 |
| Cutting Width (Decimal Inch) | 0.0940 |
| Maximum Depth of Cut (mm) | 3.81 |
| Maximum Depth of Cut (Decimal Inch) | 0.1500 |
| Coating | TiAlN |
| Insert Hand | Left Hand |
| Cutting Height (mm) | 8.74 |
| Cutting Height (Decimal Inch) | 0.3440 |
| Insert Seat Size | 3 |
| Chipbreaker | TLRP |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Minimum Corner Radius (Decimal Inch) | 0.0470 |
| Corner Radius (mm) | 1.19 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Coating Process | PVD |
| Series | Top Lok |
| Rake | Positive |
| ISO Number | TLRP-3047L 1125 |
| Manufacturers Catalog Number | TLRP-3047L 1125 |
| Insert Thickness (Decimal Inch) | 0.3440 |
