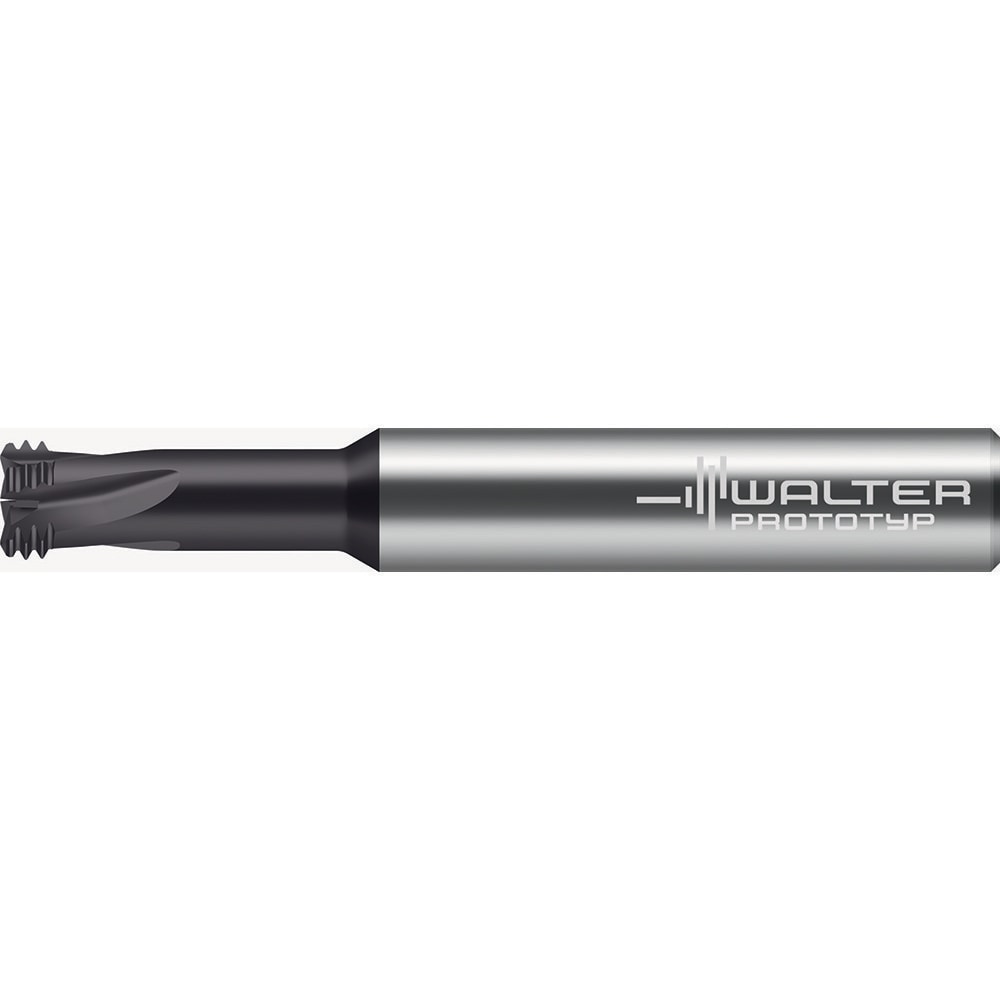

Helical Flute Thread Mill: 1/4-19, Internal, 4 Flute, 12.0000 mm Shank Dia, Solid Carbide
Item #: 55400493
Brand: Walter-Prototyp
Model #: 8405318
Product Specifications
| Material | Solid Carbide |
| Thread Size (Inch) | 1/4-19 |
| Thread Type | Internal |
| Shank Diameter (mm) | 12.0000 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Cutting Diameter (mm) | 10.40 |
| Shank Type | Cylindrical |
| Cutting Diameter (Decimal Inch) | 0.4094 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1098 |
| Length of Cut (mm) | 2.7900 |
| Shank Length (Decimal Inch) | 1.7717 |
| Shank Length (mm) | 45.000 |
| Overall Length (mm) | 83.0000 |
| Overall Length (Decimal Inch) | 3.2677 |
| Thread Standard | G |
| Flute Direction | Left Hand |
| Series | TC685-G-A1D |
| Number Of Flutes | 4 |
| Coating/Finish | TiAlN |
| Coolant Through | Yes |
| Teeth Per Inch | 19 |
| UNSPSC Code | 23242117 |
