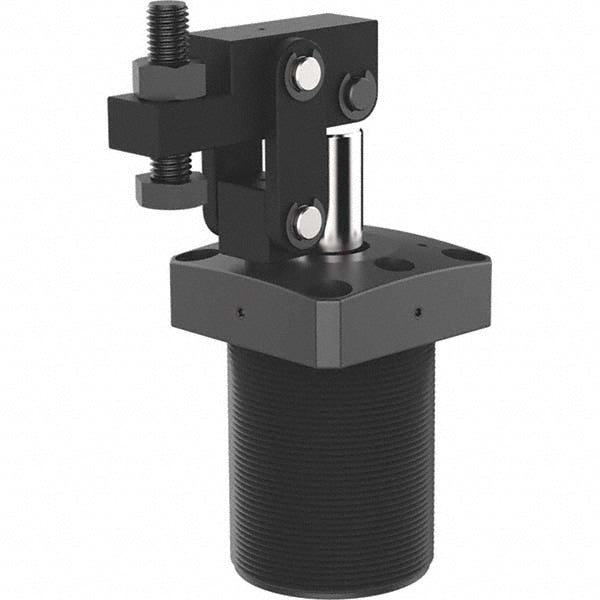

Air Swing Clamp: 167 lb Clamp Force, Straight Pull Swing, 0.15" Stroke, Double Acting
Item #: 65466757
Brand: De-Sta-Co
Model #: 8750
Product Specifications
| Operation Type | Air |
| Action Type | Double |
| Swing Direction | Straight Pull |
| Clamping Force (Lb.) | 167.00 |
| Clamping Force (kg) | 75.75 |
| Clamping Force (N) | 745.00 |
| Operating Volume (cc) | 0.64 |
| Operating Volume (Cu. In.) | 0.0230 |
| Load Capacity (Lb. - 3 Decimals) | 167 |
| Effective Clamping Area (Sq.In.) | 1.97 |
| Effective Clamping Area (sq cm) | 50.00 |
| Mount Type | Threaded Body |
| Total Stroke Distance (mm) | 3.80 |
| Total Stroke Distance (Decimal Inch) | 0.1500 |
| Body Length (Decimal Inch) | 2.9500 |
| Body Length | 75.00 |
| Body Diameter (Decimal Inch) | 2.9500 |
| Body Diameter (mm) | 75.00 |
| Vertical Stroke Distance (Decimal Inch) | 0.1500 |
| Vertical Stroke Distance (mm) | 3.80 |
| Arm Length (mm) | 26.00 |
| Arm Length (Decimal Inch - 4 Decimals) | 1.0200 |
| Maximum Operating Pressure (bar) | 7.00 |
| Body Width/Diameter (mm) | 75.00 |
| Body Width/Diameter (Decimal Inch) | 2.9500 |
| Maximum Operating Pressure (psi) | 100 |
| Maximum Operating Pressure (PSIG) | 100 |
| Minimum Operating Pressure (PSIG) | 45 |
| Minimum Operating Pressure (bar) | 3.00 |
| Minimum Operating Pressure (psi) | 45 |
| Port Size | 1/8 NPT |
| Includes | Jam Nut; Spindle; Clamp; Arm |
| Effective Unclamping Area (Sq. In.) | 1.97 |
| Base Width | 75.00 |
| Distance Between Mounting Holes Lengthwise | 57.00 |
| Height (mm) | 200.00 |
| UNSPSC Code | 27112100 |
| Width Distance Between Mount Holes | 57.00 mm |
| Base Length (mm) | 75.00 |
| Operation Type | Air |
| Action Type | Double |
| Swing Direction | Straight Pull |
| Clamping Force (Lb.) | 167.00 |
| Clamping Force (kg) | 75.75 |
| Clamping Force (N) | 745.00 |
| Operating Volume (cc) | 0.64 |
| Operating Volume (Cu. In.) | 0.0230 |
| Load Capacity (Lb. - 3 Decimals) | 167 |
| Effective Clamping Area (Sq.In.) | 1.97 |
| Effective Clamping Area (sq cm) | 50.00 |
| Mount Type | Threaded Body |
| Total Stroke Distance (mm) | 3.80 |
| Total Stroke Distance (Decimal Inch) | 0.1500 |
| Body Length (Decimal Inch) | 2.9500 |
| Body Length | 75.00 |
| Body Diameter (Decimal Inch) | 2.9500 |
| Body Diameter (mm) | 75.00 |
| Vertical Stroke Distance (Decimal Inch) | 0.1500 |
| Vertical Stroke Distance (mm) | 3.80 |
| Arm Length (mm) | 26.00 |
| Arm Length (Decimal Inch - 4 Decimals) | 1.0200 |
| Maximum Operating Pressure (bar) | 7.00 |
| Body Width/Diameter (mm) | 75.00 |
| Body Width/Diameter (Decimal Inch) | 2.9500 |
| Maximum Operating Pressure (psi) | 100 |
| Maximum Operating Pressure (PSIG) | 100 |
| Minimum Operating Pressure (PSIG) | 45 |
| Minimum Operating Pressure (bar) | 3.00 |
| Minimum Operating Pressure (psi) | 45 |
| Port Size | 1/8 NPT |
| Includes | Jam Nut; Spindle; Clamp; Arm |
| Effective Unclamping Area (Sq. In.) | 1.97 |
| Base Width | 75.00 |
| Distance Between Mounting Holes Lengthwise | 57.00 |
| Height (mm) | 200.00 |
| UNSPSC Code | 27112100 |
| Width Distance Between Mount Holes | 57.00 mm |
| Base Length (mm) | 75.00 |
| MSC Part # | 65466757 |
| Mfr Part # | 8750 |
| Country of Origin Country of Origin is subject to change | Taiwan |
