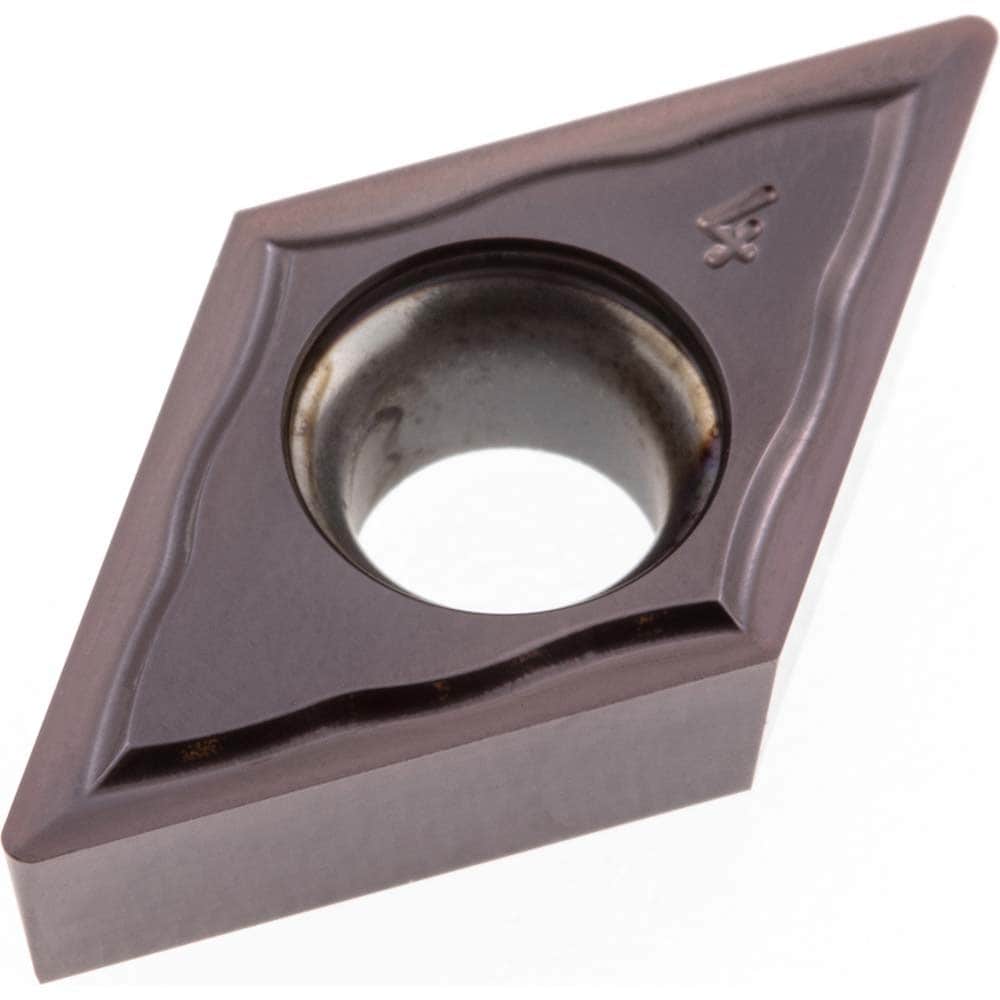

Turning Insert: DCGT32.50.2FNPS AM5020, Carbide
Item #: 18733402
Brand: Arno
Model #: 111492
Product Specifications
| ANSI Insert Code | DCGT32.50.2 |
| ISO Insert Code | DCGT11T3005 |
| Relief Angle | 7 |
| Insert Style | DCGT |
| Corner Radius (mm) | 0.05 |
| Corner Radius (Decimal Inch) | 0.0020 |
| Included Angle | 55 |
| Manufacturer Grade | AM5020 |
| Coating/Finish | PVD |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness | 3.97 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Series | DCGT |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (mm) | 0.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0197 |
| Insert Holding Method | Screw |
| Width (Inch) | 3/8 |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | PVD |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.9134 |
| Insert Length (mm) | 11.60 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Iso Code | DCGT 11T3005FN-PS |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 111492 |
| Material Grade | M25; M10 |
| Coating Classification | PVD |
| Chip Breaker | PS |
| Cutting Edge Style | Sharp |
| Industry Standard Number | DCGT32.50.1FN-PS |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Width (mm - 2 Decimals) | 9.53 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Back Boring; Facing; Turning; Back Turning; Boring |
| ANSI Size Code | 32.50.2 |
| ISO Size Code | 11T3005 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 32.50.1 |
