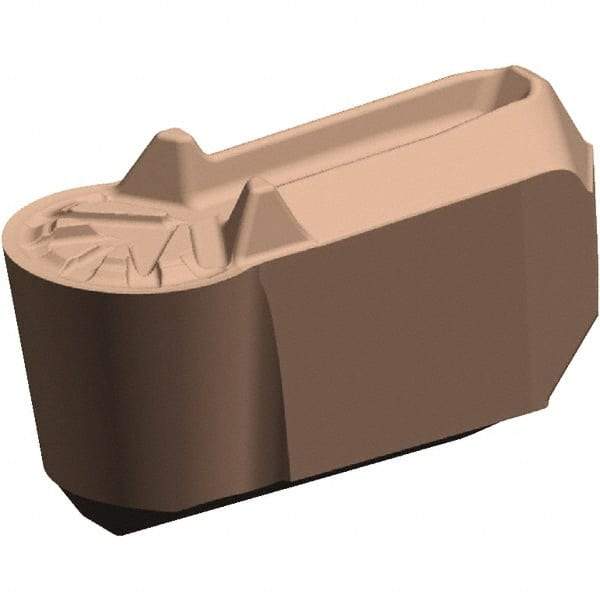

Kennametal - 4ER-P GUP Grade KCU25, 4mm Cutting Width Carbide Grooving/Cut-Off Insert - 2.62mm Max Depth of Cut, Neutral, 2mm Corner Radius, AlTiN Finish
Item #: 54463765
Brand: Kennametal
Model #: 5988781
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ER-P |
| Insert Size | 4 |
| Material | Carbide |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1570 |
| Maximum Depth of Cut (mm) | 2.62 |
| Maximum Depth of Cut (Decimal Inch) | 0.1030 |
| Manufacturer's Grade | KCU25 |
| Coating | AlTiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.43 |
| Cutting Height (Decimal Inch) | 0.1740 |
| Insert Seat Size | 4 |
| Chipbreaker | GUP |
| Multi-Use Tool | No |
| Multi-Use Application | Grooving |
| Minimum Corner Radius (Decimal Inch) | 2.0000 |
| Maximum Corner Radius (Decimal Inch) | 0.0790 |
| Corner Radius (mm) | 2.00 |
| Corner Radius (Decimal Inch) | 0.0790 |
| Coating Process | PVD |
| Overall Length (mm) | 10.10 |
| Overall Length (Decimal Inch) | 0.3990 |
| Series | Beyond Evolution |
| Rake Angle | 10 |
| Rake | Positive |
| Overall Width (mm) | 4.00 |
| Overall Width (Decimal Inch) | 0.1570 |
| Insert Thickness (Decimal Inch) | 0.1740 |
