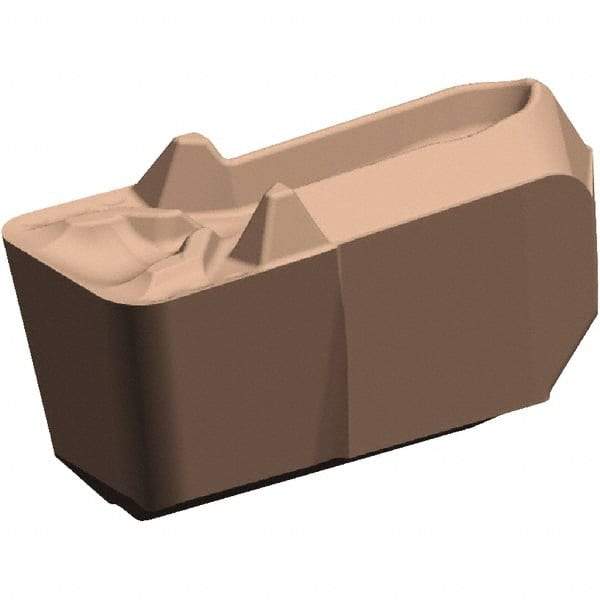

Kennametal - 6EG-P GUP Grade K313, 6mm Cutting Width Carbide Grooving/Cut-Off Insert - 4mm Max Depth of Cut, Neutral, 0.4mm Corner Radius, Uncoated
Item #: 54463583
Brand: Kennametal
Model #: 5988834
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | EG-P |
| Insert Size | 6 |
| Material | Carbide |
| Cutting Width (mm) | 6.00 |
| Cutting Width (Decimal Inch) | 0.2360 |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1560 |
| Manufacturer's Grade | K313 |
| Coating | Uncoated |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 5.10 |
| Cutting Height (Decimal Inch) | 0.2000 |
| Insert Seat Size | 6 |
| Chipbreaker | GUP |
| Multi-Use Tool | No |
| Multi-Use Application | Grooving |
| Minimum Corner Radius (Decimal Inch) | 0.4000 |
| Maximum Corner Radius (Decimal Inch) | 0.0160 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Overall Length (mm) | 14.50 |
| Overall Length (Decimal Inch) | 0.5720 |
| Series | Beyond Evolution |
| Rake Angle | 27 |
| Rake | Positive |
| Overall Width (mm) | 6.00 |
| Overall Width (Decimal Inch) | 0.2360 |
| Insert Thickness (Decimal Inch) | 0.2000 |
