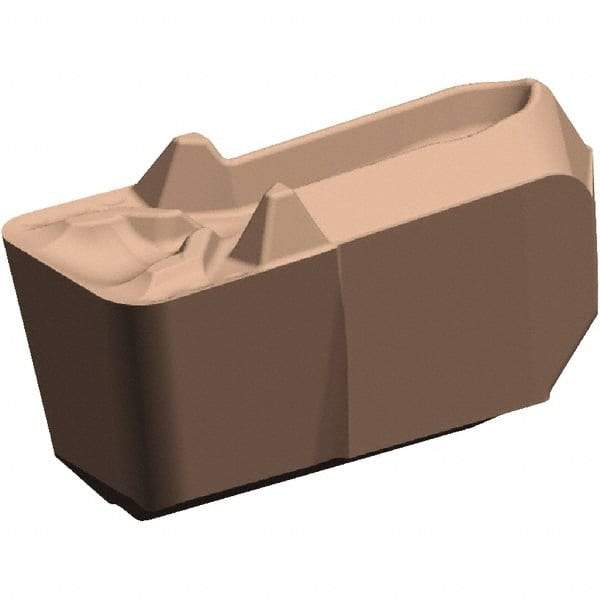

Kennametal - 6EG-U GUP Grade KCU10, 6.13mm Cutting Width Carbide Grooving/Cut-Off Insert - 4mm Max Depth of Cut, Neutral, 0.4mm Corner Radius, AlTiN Finish
Item #: 54446570
Brand: Kennametal
Model #: 6012948
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | EG-U |
| Insert Size | 6 |
| Material | Carbide |
| Cutting Width (mm) | 6.13 |
| Cutting Width (Decimal Inch) | 0.2410 |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1590 |
| Manufacturer's Grade | KCU10 |
| Coating | AlTiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 5.10 |
| Cutting Height (Decimal Inch) | 0.2010 |
| Lead Angle | 4 |
| Insert Seat Size | 6 |
| Chipbreaker | GUP |
| Multi-Use Tool | No |
| Multi-Use Application | Grooving |
| Minimum Corner Radius (Decimal Inch) | 0.0160 |
| Maximum Corner Radius (Decimal Inch) | 0.0160 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Coating Process | PVD |
| Overall Length (mm) | 14.60 |
| Overall Length (Decimal Inch) | 0.5750 |
| Series | Beyond Evolution |
| Rake Angle | 27 |
| Rake | Positive |
| Overall Width (mm) | 6.13 |
| Overall Width (Decimal Inch) | 0.2410 |
| Insert Thickness (Decimal Inch) | 0.2010 |
