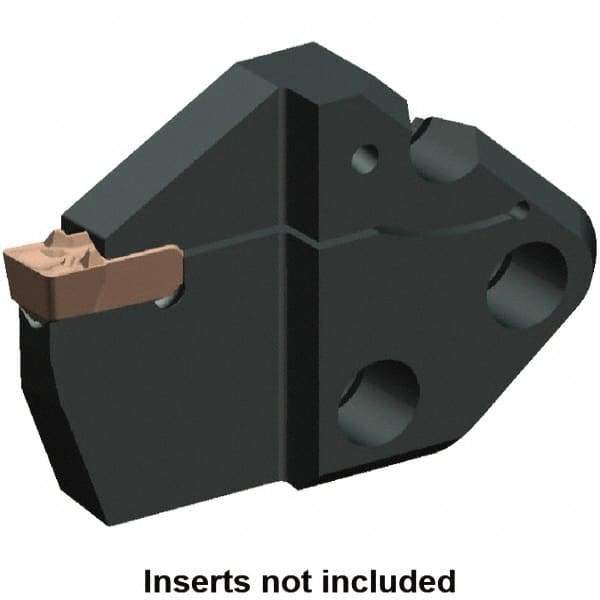

Kennametal - 8" Groove Width, 16mm Max Depth of Cut, Left Hand Cut, EVM Indexable Grooving Blade - 8 to 8.99mm Insert Width, 8 Seat Size, A2, A3, A4 Insert Style, Series Beyond Evolution
Item #: 54414990
Brand: Kennametal
Model #: 6031040
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Left Hand |
| Minimum Groove Width (mm) | 8.00 |
| Minimum Groove Width (Decimal Inch) | 0.3150 |
| Maximum Insert Width (mm) | 8.99 |
| Maximum Insert Width (Decimal Inch) | 0.3539 |
| Minimum Insert Width (mm) | 8.00 |
| Minimum Insert Width (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 16.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Blade Style | EVM |
| Series | Beyond Evolution |
| Blade Width (mm) | 7.00 |
| Blade Width (Decimal Inch) | 0.2760 |
| Maximum Groove Width (mm) | 8.00 |
| Maximum Groove Width (Decimal Inch) | 0.3150 |
| Overall Length (mm) | 49.62 |
| Overall Length (Decimal Inch) | 1.9540 |
| Cutting Height (mm) | 28.76 |
| Cutting Height (Decimal Inch) | 1.1320 |
| Insert Style | A2; A3; A4 |
| Insert Seat Size | 8 |
| Cartridge Size | 65 |
| Complete Insert Compatibility | EG0800M08P08 |
