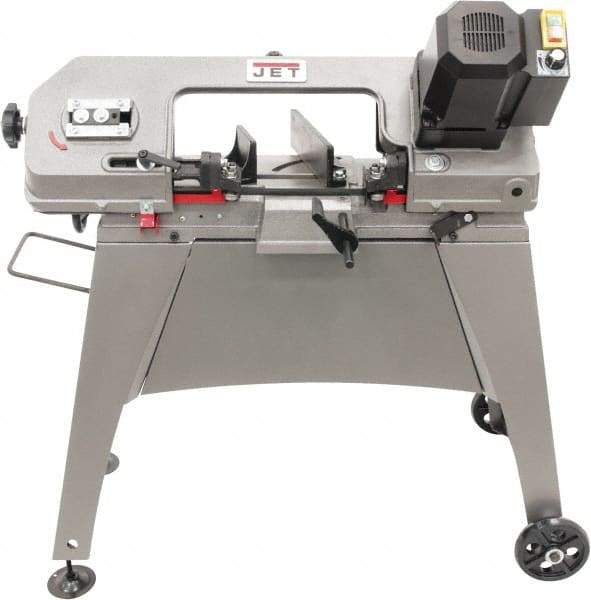

Jet - 5 x 6" Semi-Automatic Combo Horizontal & Vertical Bandsaw - 1 Phase, 90° Vise Angle of Rotation, 1/2 hp, 115 Volts, Geared Head Drive
Item #: 54312186
Brand: Jet
Model #: 414548
Exact Tooling IR#: 04
Features and Benefits
Semi-Automatic bandsaws are designed for the bow of the saw to raise after the preprogrammed cut is complete. The operator will then manually reposition the saw for another cut.
Geared head drive systems are similar to step pulleys, but are driven by a geared transmission. They offer rapid speed changes by turning a hand dial. They feature three to four fixed speeds
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors.
| Product Specifications | |
|---|---|
| Machine Style | Semi-Automatic |
| Drive Type | Geared Head |
| Angle of Rotation | 90 |
| Maximum Capacity (Rectangular) at 90 (Inch) | 5 x 6 |
| Maximum Capacity (Rounds) at 90 (Inch) | 5 |
| Phase | 1 |
| Maximum Capacity (Rectangular) at 45 (Inch) | 4-1/2 x 3 |
| Maximum Capacity (Rounds) at 45 (Inch) | 3 |
| Blade Width (Inch) | 1/2 |
| Blade Speeds (SFPM) | 80 to 230 |
| Blade Length (Inch) | 64-1/2 |
| Blade Thickness (mm) | 0.64 |
| Blade Thickness (Decimal Inch) | 0.0250 |
| Horsepower (HP) | 1/2 |
| Overall Height (Decimal Inch) | 41.3400 |
| Voltage | 115 |
