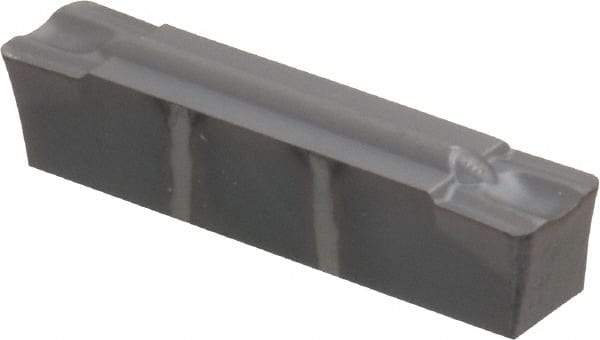

Kennametal - 0505M0G GMP Grade KC5025, 5.05mm Cutting Width Carbide Grooving Insert - 4.2mm Max Depth of Cut, Neutral, 0.8mm Corner Radius, TiAlN Finish
Item #: 54126305
Brand: Kennametal
Model #: 1923839
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | G |
| Insert Size | 0505M0 |
| Material | Carbide |
| Cutting Width (mm) | 5.05 |
| Cutting Width (Decimal Inch) | 0.1988 |
| Maximum Depth of Cut (mm) | 4.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.1654 |
| Material Grade | C2/C6 |
| Manufacturer's Grade | KC5025 |
| Coating | TiAlN |
| Insert Hand | Neutral |
| Insert Seat Size | 5 |
| Chipbreaker | GMP |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Turning |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Coating Process | PVD |
| Overall Length (mm) | 25.00 |
| Overall Length (Decimal Inch) | 0.9843 |
| Series | A4 |
| Rake | Positive |
| Manufacturers Catalog Number | A4G0505M05U08GMP |
