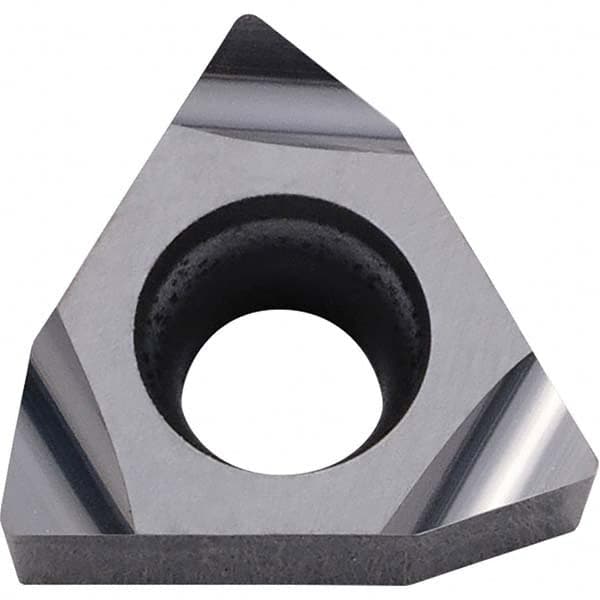

Kyocera - WBET151505 M-P Grade PR1535 Carbide Turning Insert
Item #: 97767099
Brand: Kyocera
Model #: 8861041
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WBET |
| Insert Size | 151505 |
| Material | Carbide |
| Inscribed Circle (Inch) | 3/16 |
| Thickness (Inch) | 3/32 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | PR1535 |
| Coating | Megacoat Nano |
| Chip Breaker | M-P |
| Hole Diameter (Decimal Inch) | 0.0906 |
| ISO Number | WBET080202ML-P |
| Rake | Positive |
| Relief Angle | 5 |
| Coating Process | PVD |
| Manufacturers Catalog Number | WBET151505MLP PR1535 |
| Primary Workpiece Material | S |
| Secondary Workpiece Material | M |
| Included Angle | 80 |
| Insert Hand | Left Hand |
| Series | WBET |
| Insert Holding Method | Screw or Clamp |
| Cutting Edge Style | Sharp |
| Multi Use Application | Boring, Internal Facing |
| MultiUseTool | Yes |
| Shape | Trigon |
