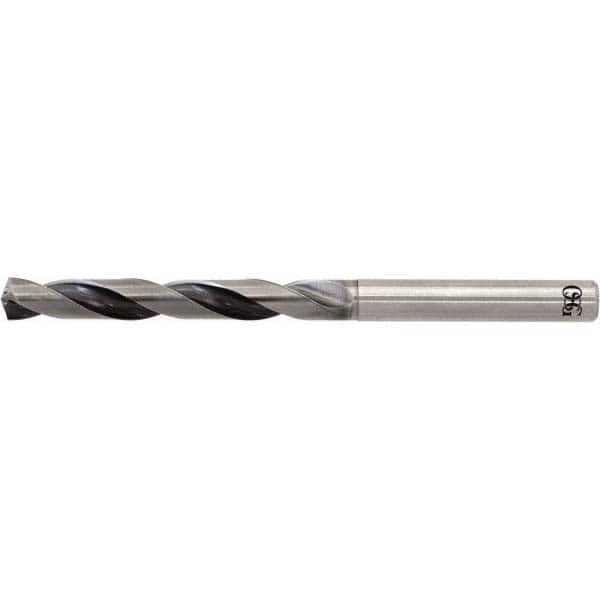

OSG - 13.9mm 140° Solid Carbide Jobber Drill
Item #: 36460731
Brand: OSG
Model #: 8668390
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
WXL is a nano-technological coating that has higher hardness than TiALN. It is commonly used on non-ferrous materials and hardened steels. WXL is a proprietary coating exclusive to OSG Tap and Die, Inc.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 13.90 |
| Drill Bit Size (Decimal Inch) | 0.5472 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | WXL |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | Coolant Through |
| Flute Length (mm) | 112.00 |
| Overall Length (mm) | 176.00 |
| Flute Length x Diameter Ratio | 5xD |
| Shank Diameter (mm) | 14.00 |
| Drill Point Length (Decimal Inch) | 2.0000 |
