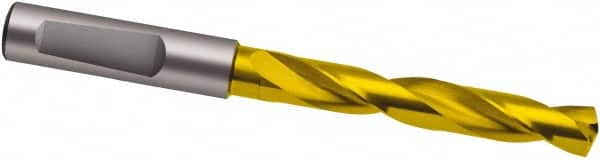

Guhring - 45/64" 140° Solid Carbide Jobber Drill
Item #: 58602335
Brand: Guhring
Model #: 9011830178600
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 45/64 |
| Drill Bit Size (Decimal Inch) | 0.7031 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Coolant Through | Coolant Through |
| Flute Length (mm) | 93.00 |
| Overall Length (mm) | 143.00 |
| Flute Length x Diameter Ratio | 5xD |
| Point Type | SU Point |
| Shank Diameter (mm) | 18.00 |
| Spiral Type | Regular Spiral |
| Specification Designation | DIN |
| Number of Flutes | 2 |
| Web Thinning | Web-Thinning |
| Drill Bit Grade | High Performance |
| Series/List | 1183 |
