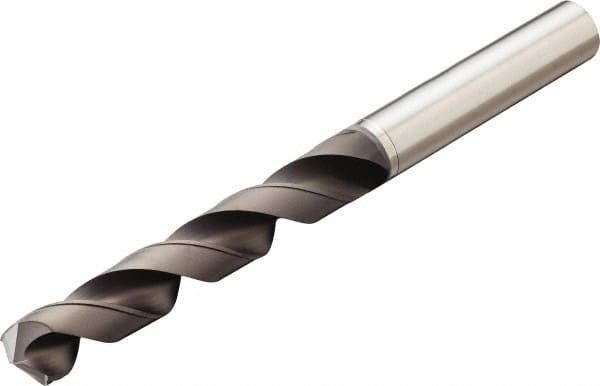

Sandvik Coromant - 4mm 130° Solid Carbide Jobber Drill
Item #: 81690240
Brand: Sandvik Coromant
Model #: 5859630
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Diamond (PCD) coating is one of the hardest coatings. It is commonly used on concrete, fiberglass, plastic, stone, aluminum alloy and extremely difficult-to-machine materials.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 4.00 |
| Drill Bit Size (Decimal Inch) | 0.1575 |
| Drill Point Angle | 130 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Diamond |
| Cutting Direction | Right Hand |
| Shank Type | Cylindrical |
| Coolant Through | No |
| Flute Length (mm) | 36.00 |
| Flute Length (Decimal Inch) | 1.4173 |
| Overall Length (mm) | 74.00 |
| Overall Length (Decimal Inch) | 2.9134 |
| Flute Length x Diameter Ratio | 5xD |
| Shank Diameter (mm) | 6.00 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Maximum Drilling Depth (Decimal Inch) | 0.8228 |
| Maximum Drilling Depth (mm) | 20.90 |
| Drill Point Length (mm) | 0.90 |
| Drill Point Length (Decimal Inch) | 0.0354 |
| Number of Flutes | 2 |
| Series/List | CoroDrill Delta-C |
