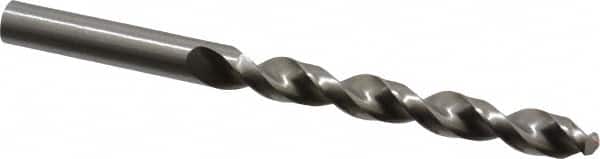

Accupro - 23/64" 130° Cobalt Jobber Drill
Item #: 05599683
Brand: Accupro
Model #:
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Parabolic flutes are constructed with a wider flute shape for increased chip flow.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 23/64 |
| Drill Bit Size (Decimal Inch) | 0.3594 |
| Drill Point Angle | 130 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (Inch) | 3-3/16 |
| Flute Length (mm) | 81.00 |
| Flute Length (Decimal Inch) | 3.1875 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9063 |
| Overall Length (Inch) | 4-29/32 |
| Point Type | Split Point |
| Shank Diameter (Inch) | 23/64 |
| Specification Designation | DIN |
| Web Configuration | Tapered |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 338 |
| Drill Bit Grade | High Performance |
| Material Grade | M35 |
