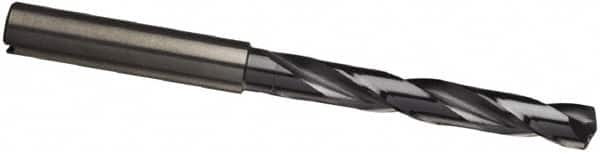

Guhring - 12.2mm 140° Solid Carbide Jobber Drill
Item #: 58531864
Brand: Guhring
Model #: 9085110122000
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Nano-A is a multi-layer coating that combines TiAlN and AlTiN coatings in a micro-layer structure that is harder and more wear resistant. It is used at high speeds on alloy steels, stainless steels and aerospace materials. Nano-A is a proprietary coating exclusive to Guhring, Inc.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 12.20 |
| Drill Bit Size (Decimal Inch) | 0.4803 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | nano-A |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Coolant Through | Coolant Through |
| Flute Length (mm) | 77.00 |
| Overall Length (mm) | 124.00 |
| Flute Length x Diameter Ratio | 5xD |
| Point Type | VA Point |
| Shank Diameter (mm) | 14.00 |
| Spiral Type | Regular Spiral |
| Specification Designation | DIN |
| Number of Flutes | 2 |
| Web Thinning | Web-Thinning |
| Drill Bit Grade | High Performance |
| Series/List | 8511 |
