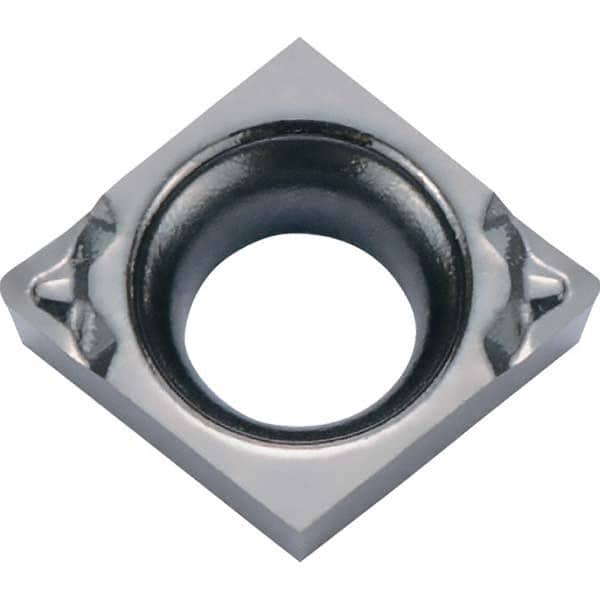

Kyocera - CCGT21502 MFP-PF Grade PR1725 Carbide Turning Insert
Item #: 11398617
Brand: Kyocera
Model #: 8863748
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CCGT |
| Insert Size | 21502 |
| Material | Carbide |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Manufacturer's Grade | PR1725 |
| Coating | Megacoat Nano Plus |
| Chip Breaker | MFP-PF |
| Hole Diameter (Decimal Inch) | 0.1102 |
| ISO Number | CCGT060201MFP-PF |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | CCGT21502MFPPF PR1725 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | M |
| Included Angle | 80 |
| Insert Hand | Neutral |
| Series | CCGT |
| Insert Holding Method | Screw or Clamp |
| Cutting Edge Style | Sharp |
| Multi Use Application | External Turning, Facing, Boring, Internal Facing, Sub-Spindle |
| MultiUseTool | Yes |
| Shape | Diamond |
