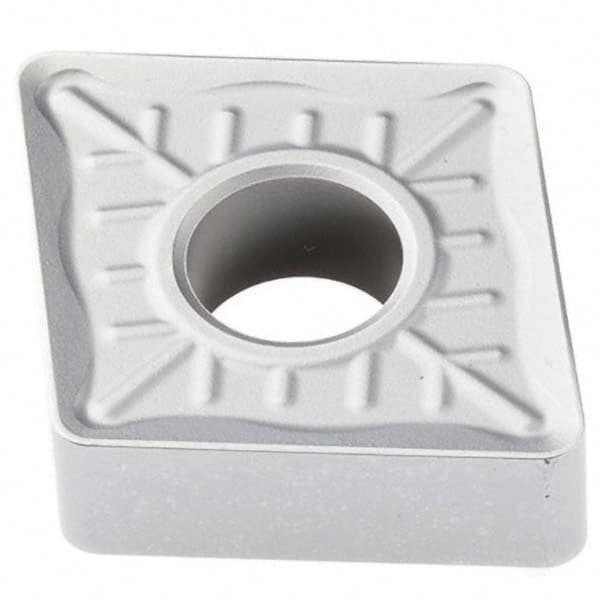

Seco - CNMM646 R7 Grade TP25 Carbide Turning Insert
Item #: 96228150
Brand: Seco
Model #: 03310330
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMM |
| Insert Size | 646 |
| Material | Carbide |
| Length (Decimal Inch) | 0.7598 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 1/4 |
| Corner Radius (Decimal Inch) | 0.0945 |
| Manufacturer's Grade | TP25 |
| Coating | TiCN/Al2O3 |
| Chip Breaker | R7 |
| Hole Diameter (Decimal Inch) | 0.3120 |
| Lead Angle | 95.000 |
| Rake | Negative |
| Rake Angle | 20 |
| Coating Process | CVD |
| Manufacturers Catalog Number | CNMM646-R7 |
| Included Angle | 80 |
| Cutting Direction | Right Hand |
| Insert Hand | Neutral |
| Series | CNMM |
| Insert Holding Method | Screw & Clamp |
| Cutting Edge Style | Honed |
| Shape | Diamond |
