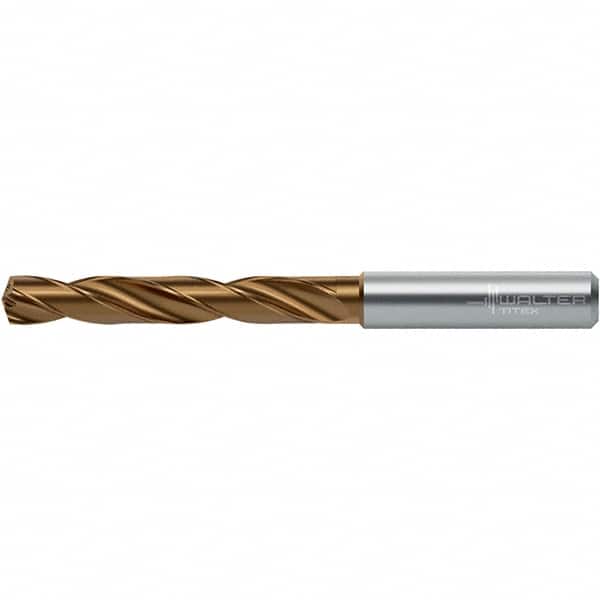

Walter-Titex - 1/8" 140° Solid Carbide Jobber Drill
Item #: 32402570
Brand: Walter-Titex
Model #: 7377409
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiSiAlCrN/AlTiN is a multi-layer coating that is extremely wear-resistant. TiSiAlCrN/AlTiN is a proprietary coating exclusive to Walter Titex.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 1/8 |
| Drill Bit Size (Decimal Inch) | 0.1250 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiSiAlCrN/AlTiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | Coolant Through |
| Flute Length (mm) | 28.00 |
| Overall Length (mm) | 66.00 |
| Flute Length x Diameter Ratio | 5xD |
| Shank Diameter (mm) | 6.00 |
| Maximum Drilling Depth (mm) | 23.00 |
| Drill Point Length (mm) | 0.58 |
| Number of Flutes | 2 |
| Material Grade | WJ30ET |
| Series/List | DC160 |
