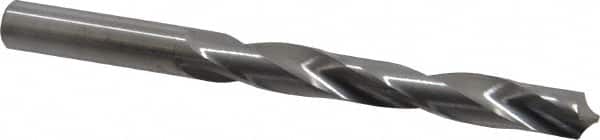

M.A. Ford - 5/16" 118° Solid Carbide Jobber Drill
Item #: 00656199
Brand: M.A. Ford
Model #: 20431250
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 5/16 |
| Drill Bit Size (Decimal Inch) | 0.3125 |
| Drill Point Angle | 118 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (Inch) | 2-3/8 |
| Overall Length (Inch) | 3-3/4 |
| Point Type | Faceted |
| Shank Diameter (Inch) | 5/16 |
| Spiral Type | Regular Spiral |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | -0.013 to 0.000 |
| Drill Bit Diameter Tolerance (Decimal Inch) | -0.0005 to 0.0000 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | General Purpose |
| Series/List | 204 |
