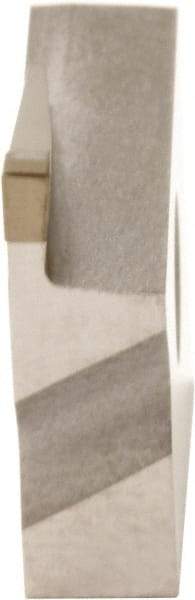

Sumitomo - 4125CGA Grade BN2000, 3.18mm Cutting Width PCBN Grooving Insert - 5mm Max Depth of Cut, Right Hand, 0.2007mm Corner Radius, Uncoated
Item #: 53973988
Brand: Sumitomo
Model #: U103854
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | CGA |
| Insert Size | 4125 |
| Material | PCBN |
| Cutting Width (mm) | 3.18 |
| Cutting Width (Decimal Inch) | 0.1250 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Manufacturer's Grade | BN2000 |
| Coating | Uncoated |
| Insert Hand | Right Hand |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.2007 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Series | GWB |
| Overall Width (mm) | 4.76 |
| Overall Width (Decimal Inch) | 0.1875 |
