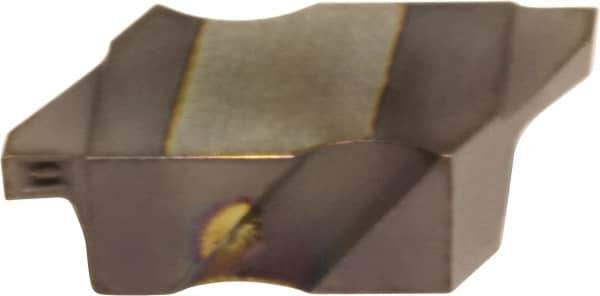

Sumitomo - 2125SG CB Grade EH520V, 1/8" Cutting Width Carbide Grooving Insert - 0.11" Max Depth of Cut, Neutral, 0.005 to 0.01" Corner Radius, TiAlN Finish
Item #: 53948774
Brand: Sumitomo
Model #: U102068
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SG |
| Insert Size | 2125 |
| Material | Carbide |
| Cutting Width (Decimal Inch) | 0.1250 |
| Maximum Depth of Cut (Decimal Inch) | 0.1100 |
| Manufacturer's Grade | EH520V |
| Coating | TiAlN |
| Insert Hand | Neutral |
| Cutting Height (Decimal Inch) | 0.2190 |
| Chipbreaker | CB |
| Multi-Use Tool | No |
| Minimum Corner Radius (Decimal Inch) | 0.0050 |
| Corner Radius (Decimal Inch) | 0.005-0.010 |
| Series | SumiNotch |
| Overall Width (Decimal Inch) | 0.1500 |
