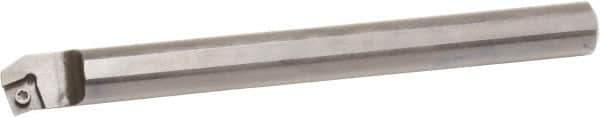

Sumitomo - 1-1/8" Min Bore Diam, 12" OAL, 1" Shank Diam, BSSKO Indexable Boring Bar - SPGG 322 Insert, Screw Holding Method
Item #: 53946513
Brand: Sumitomo
Model #: 2000W1W
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | BSSKO |
| Minimum Bore Diameter (Decimal Inch) | 1.1250 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 12.0000 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Compatibility | SPGG 322 |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | 15 |
| Center to Cutting Edge (Decimal Inch) | 0.5630 |
| Insert Thickness (Inch) | 1/8 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Rake Angle | 0 |
| Complete Insert Compatibility | SPGG 322L |
| Toolholder Material | Steel |
