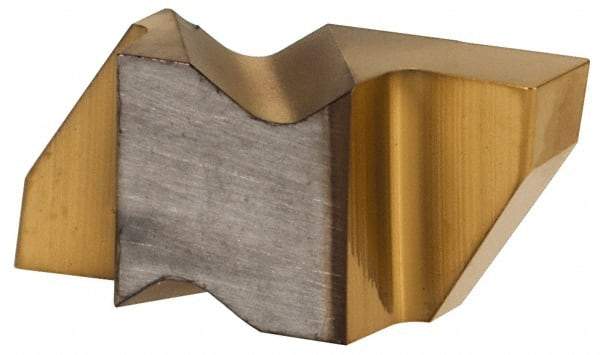

Hertel - 4250IG Grade HC335, 6.35mm Cutting Width Carbide Grooving Insert - 6.35mm Max Depth of Cut, Right Hand, TiN Finish
Item #: 53862306
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | IG |
| Insert Size | 4250 |
| Material | Carbide |
| Cutting Width (mm) | 6.35 |
| Cutting Width (Decimal Inch) | 0.2500 |
| Maximum Depth of Cut (mm) | 6.35 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Manufacturer's Grade | HC335 |
| Coating | TiN |
| Insert Hand | Right Hand |
| Cutting Height (Decimal Inch) | 0.4530 |
| Lead Angle | 0 |
| Insert Seat Size | 4 |
| Multi-Use Tool | No |
| Minimum Corner Radius (Decimal Inch) | 0.0200 |
| Maximum Corner Radius (Decimal Inch) | 0.0250 |
| Coating Process | PVD |
| Series | HertelNotch |
| Overall Width (Decimal Inch) | 0.2550 |
