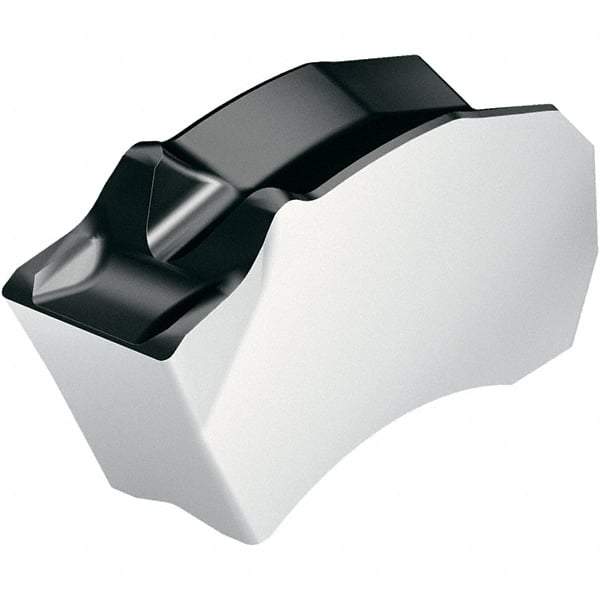

Walter - SX6E600N04 CE4 WSM33S Grade, 0.2362" Cutting Width, Carbide Cutoff Insert - Neutral Lead Angle, 0.0157" Cnr Rad, TiAlN/Al2O3/Al Coated, Single End
Item #: 53770848
Brand: Walter
Model #: 6427111
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | SX |
| Insert Size | 6E600N04 |
| Lead Angle Direction | Neutral |
| Cutting Width (mm) | 6.00 |
| Cutting Width (Decimal Inch) | 0.2362 |
| Material Grade | S30/M30/P35 |
| Manufacturer's Grade | WSM33S |
| Coating | TiAlN/Al2O3/Al |
| Series | Tiger-tec Silver |
| Chipbreaker | CE4 |
| Full Radius | No |
| Multi-Use Application | Grooving |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Insert Hand | Neutral |
| Insert Holding Method | Clamp |
| Manufacturers Catalog Number | SX-6E600N04-CE4 |
