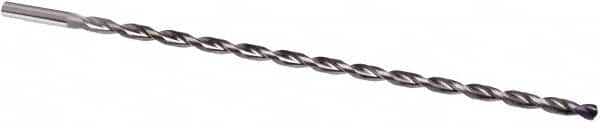

Extra Length Drill Bit: 0.1654″ Dia, 135 °, Solid Carbide TiAlN (Tip) Finish, Spiral Flute, Straight-Cylindrical Shank, Series 6513
Item #: 53725339
Brand: Guhring
Model #: 9065130042000
Product Specifications
| Drill Bit Size (mm) | 4.20 |
| Overall Length (mm) | 208.00 |
| Flute Length (mm) | 168.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | TiAlN (Tip) |
| Drill Point Angle | 135 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | 6513 |
| Point Type | Cone Relief |
| Cutting Direction | Right Hand |
| Spiral Type | Regular |
| Drill Bit Diameter Tolerance | h7 |
| Number Of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Secondary Workpiece Material | Alloy Steel; Stainless Steel; Nickel Alloy |
| Drill Bit Grade | High Performance |
| Drill Bit Size (Decimal Inch) | 0.1654 |
| Shank Diameter (mm) | 6.00 |
| Flute By Diameter Ratio | 30xD |
