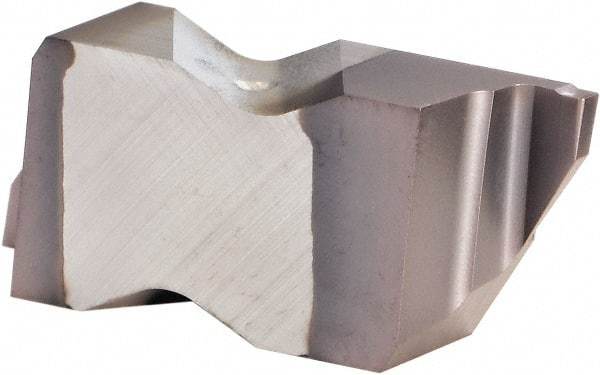

Kennametal - 3M100NG K Grade KCU25, 1mm Cutting Width Carbide Grooving Insert - 0.0752" Max Depth of Cut, Right Hand, 0.0075" Corner Radius, AlTiN Finish
Item #: 53404695
Brand: Kennametal
Model #: 4109699
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | NG |
| Insert Size | 3M100 |
| Material | Carbide |
| Cutting Width (mm) | 1.00 |
| Cutting Width (Decimal Inch) | 0.0394 |
| Maximum Depth of Cut (Decimal Inch) | 0.0752 |
| Manufacturer's Grade | KCU25 |
| Coating | AlTiN |
| Insert Hand | Right Hand |
| Cutting Height (mm) | 8.74 |
| Cutting Height (Decimal Inch) | 0.3440 |
| Lead Angle | 0 |
| Insert Seat Size | 3 |
| Chipbreaker | K |
| Multi-Use Tool | No |
| Corner Radius (Decimal Inch) | 0.0075 |
| Coating Process | PVD |
| Series | Top Notch |
| Rake Angle | 0 |
| Rake | Neutral |
| Included Angle | 55 |
